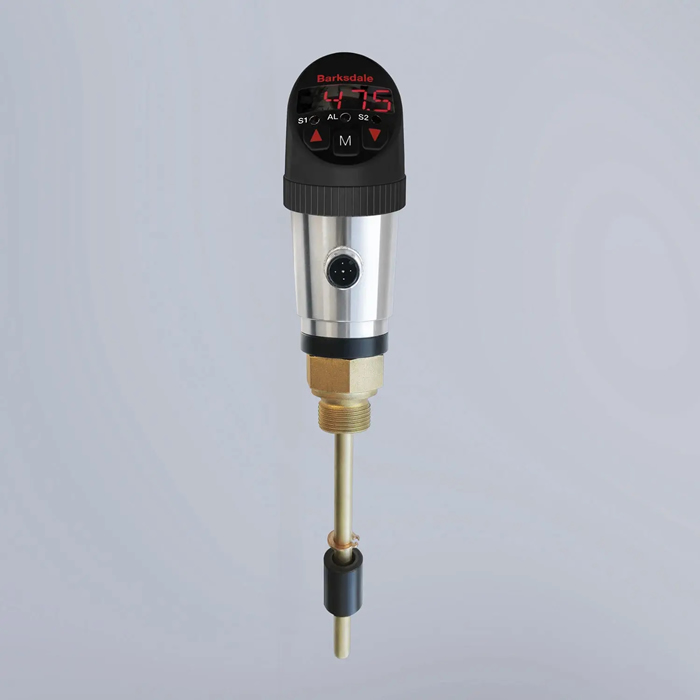

BTLS2000 Electronic Temperature Switch & Level Switch
BTLS2000電子式溫度和液位開關

Barksdale 的BTLS2000電子交換機將溫度和水平組合在一個設備中。液壓和冷卻系統中許多應用的優化解決方案。由于空間始終是一個限制， Barksdale 提供與BTLS一個非常緊湊的版本使用18毫米直徑的浮子，允許G1+2"或M20的過程連接。 雖然 BTLS 的模擬版本具有最大限度地減少應用程序中傳感器數量的優勢，但 IO 鏈接版本將因過程參數的數字傳輸而帶來全部好處。

? 測量范圍從 0...100°C 至 30...140°C 溫度加模擬輸出的
? 1 或 2 個設置點
? 1 或 2 個級別設置點（最小和最小報警器）
? IO 鏈接數字通信可用
? IP67

BTLS2000 Electronic Temperature Switch & Level Switch

Barksdale's BTLS2000 electronic switch combines temperature and level in one device. An optimized solution for many applications in hydraulics and cooling systems. As space is always a constraint, Barksdale offers with BTLS a very compact version using 18mm diameter floats to allow process connection of G1/2” or M20. While an analogue version of the BTLS has the advantage of minimizing the number of sensors in your application, the IO link version however will bring you the full benefit due to the digital transmission of process parameters.

? Measuring ranges from 0 ... 100°C to 30 ... 140°C
? 1 or 2 setpoints for Temperature plus analogue output
? 1 or 2 setpoints for Level (Min and Min-min alarm)
? IO-Link digital communication available
? IP67

應用：

溫度和液位控制 Temperature & Level control for
