Barksdale BDS3000電子雙壓差開關帶IO連接選項的電子雙壓差開關

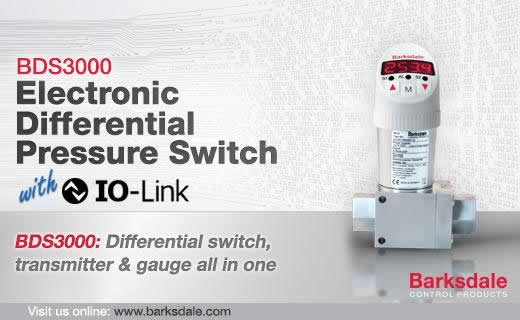

BDS3000 Electronic Dual Differential Pressure Switch
Electronic Dual Differential Pressure Switch with IO-Link Option

BDS3000 Description

Barksdale BDS3000現在有IO鏈接選項！BDS3000是一種電子差壓開關，用于過濾系統的應用，其壓差范圍為500 PSID，公壓為2500磅/英寸。變送器功能通過提供0至10V DC和4至20mA的模擬輸出信號提供，必要時可現場選擇。在安裝過程中，可以將滿量程輸出調整到低至25%的FSO，從而使其具有更大的靈活性，減少了需要存儲多個壓力范圍的需要。大的14段LED角顯示器是美觀的，并允許從多個角度清晰可讀的過程壓力。安裝孔是內置的，使其更容易安裝在不同的方向，以滿足您的系統需要。即使該裝置必須倒置安裝，內部軟件也能將其顯示器旋轉180°。此外，320°可旋轉的電氣連接和顯示外殼使安裝單元非常簡單，有助于降低安裝成本，從而實現安裝方法和位置的多功能性。強大的電磁干擾保護允許穩定的輸出在今天的工廠，電動勢和大功率對講機和VFD的存在。此外，IP67等級的外殼使該裝置適用于潮濕的環境，甚至完全浸沒。帶有IO Link的BDS3000結合了巴克斯代爾的核心技術產品專長和定制能力，以及IO Link的前瞻性通信協議，支持工業4.0，這是工業市場的關鍵愿景之一。

Barsdakle BDS3000電子雙壓差開關帶IO連接選項的電子雙壓差開關
BDS3000 Electronic Dual Differential Pressure Switch Electronic Dual Differential Pressure Switch with IO-Link Option

Barksdale BDS3000 now with IO-Link option! BDS3000 is an electronic differential pressure switch was built for filtration systems applications with differential pressure ranges that vary up to 500 psid and with a maximum common pressure of 2,500 psi.Transmitter functionality is offered via supplying analogue output signals 0 to 10V DC and 4 to 20mA, and is field selectable if needed. The full scale output can be adjusted to as low as 25% of FSO during installation enabling more flexibility, reducing the need to stock multiple pressure ranges.

The large 14 segment LED angled display is aesthetically pleasing and allows clear readability of the process pressure from multiple viewing angles. Mounting holes are built-in, making it easier to install in various orientations to fit your system needs. Even if the unit must be mounted upside down, the internal software is capable of rotating its display 180°. Plus, the 320° rotatable electrical connection and display housing makes installing the unit very simple, helping reduce installation costs allowing for versatility of installation method and location. Robust EMI protection allows for stable output in today’s factories where EMF and high powered walkie-talkies and VFD’s are present. Additionally, the IP67 class rated housing makes this unit suitable for the wettest of environments, and even full submersion.BDS3000 with IO-Link combines Barksdale’s core strength of technical product expertise and customization capabilities with the forward looking communication protocol of IO-Link, supporting Industry 4.0, one of the key visions in the global industrial market.

產品應用領域：

Pressure control for:
Filtration
Machine tool industry
Factory Automation
Lubrication monitoring
Pumps and compressors
IO Device Description look up: IODD Finder

規格參數：

Measuring range: differential: 0 - 500 psid
Enclosure Rating: Type 4X (IP65) / Type 6 (IP67)
Two switch points
0.50% accuracy
Analog output 4 - 20 mA or 0 - 10 V
Superior EMI protection
Display & electronic connection: rotatable by 320°
Simple navigation menu
IO-Link digital communication interface
Suitable for rapid cycling applications
Hydraulic and pneumatic compatible

Datasheets
BDS3000 Datasheet
Operating Manuals
Manual for BDS3000
