Parker Autoclave Needle Valves, SW Series - 15,000 PSI
派克Autoclave SW系列針型閥
派克的 Autoclave SW系列針型閥是設計為高流量應用，帶有不旋轉閥桿的針型閥，工作壓力為15000 psi（1034 bar）。派克Autoclave高壓鋼管尺寸范圍從1 / 8“到1 / 2”可選。鋼管連接采用派克Autoclave Speed Bite單卡套設計，操作溫度0°F 到650°F（17.8°C 到343°C）。316不銹鋼閥體結構，其他材質選項可選。除了這些閥門的許多特性外，這些閥門還可以在應用場合提供穩定和無故障的服務。
市場：
- 石油和天然氣
- 石化
- 化學
特征:
- SW系列閥門設計提供了更高的流量能力
- 鋼管尺寸從1/8英寸到1/2英寸。
- 上下運動的閥桿設計/棒料本體設計。
- 非旋轉的閥桿大幅降低閥桿與閥座之間的磨損。
- 金屬對金屬閥座實現氣密性關閉，延長的閥桿/閥座在磨料流體中的壽命，更大的耐久性，可重復開/關循環和優良的耐腐蝕性。
- 聚四氟乙烯封裝提供穩定的閥桿和閥體密封。
- 選擇閥桿套筒和填料壓蓋材料，以延長螺紋循環壽命和降低手柄扭矩。
- 錐形閥頭或調節型閥頭選項可選。
- 有五種閥體流道類型。
應用：
- 中壓橇塊，或面板設計
- 化學注射模塊
- 中壓流體處理系統
- 試驗臺
Parker Autoclave Needle Valves, SW Series - 15,000 PSI
派克Autoclave SW系列針型閥
Technical Specifications
|
| Maximum Operating Pressure: |
15,000, 10,000 psi |
| Tube O.D.: |
1/4", 3/8", 1/2" |
| Stem Type: |
VEE, REG |
| Valve Type: |
3 Way Straight, 3-Way Angle, 3-Way,Two on Pressure, 3-Way,One on Pressure, 3-Way,Two Stem Manifold |
Markets:
- Oil and Gas
- Petrochemical
- Chemical
Features:
- SW Series valve design provides increased flow capabilities
- Tubing sizes from 1/8” to 1/2”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Available in five body patterns.
Applications:
- Medium Pressure Skid Panels
- Chemical Injection
- Medium Pressure Fluid Handling Systems
- Test Benches

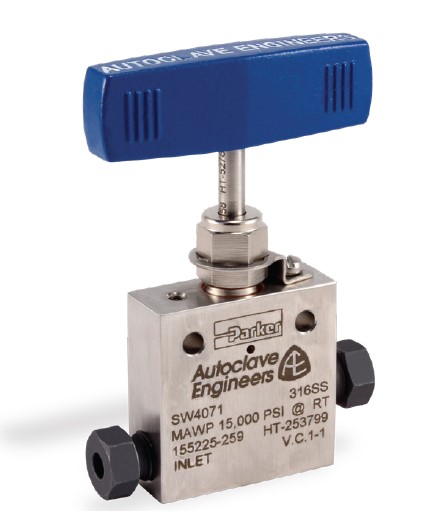

Parker Autoclave's SW Series needle valves are a non-rotating rising stem design, with working pressures to 15,000 psi (1034 bar). These high flow valves are available in 316 Stainless Steel and utilize the Speed Bite single ferrule connection.Parker Autoclave's SW Series needle valves are designed as a high flow, non-rotating rising stem valve, with working pressures to 15,000 psi (1034 bar). The Parker Autoclave tubing sizes range from 1/8"" to 1/2"". Tubing connections utilizes Parker Autoclave Speed Bite single ferrule design. Operating temperatures from 0°F to 650°F (-17.8°C to 343°C). 316 stainless steel construction, other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Part |
Maximum Working Pressure (psi) |
Tube O.D. |
Stem Type |
Valve Type |
SW4071 |
15,000 |
1/4" |
VEE |
3 Way Straight |
SW4072 |
15,000 |
1/4" |
VEE |
3-Way Angle |
SW4073 |
15,000 |
1/4" |
VEE |
3-Way,Two on Pressure |
SW4074 |
15,000 |
1/4" |
VEE |
3-Way,One on Pressure |
SW4075 |
15,000 |
1/4" |
VEE |
3-Way,Two Stem Manifold |
SW4081 |
15,000 |
1/4" |
REG |
3 Way Straight |
SW4082 |
15,000 |
1/4" |
REG |
3-Way Angle |
SW4083 |
15,000 |
1/4" |
REG |
3-Way,Two on Pressure |
SW4084 |
15,000 |
1/4" |
REG |
3-Way,One on Pressure |
SW4085 |
15,000 |
1/4" |
REG |
3-Way,Two Stem Manifold |
SW6071 |
15,000 |
3/8" |
VEE |
3 Way Straight |
SW6072 |
15,000 |
3/8" |
VEE |
3-Way Angle |
SW6073 |
15,000 |
3/8" |
VEE |
3-Way,Two on Pressure |
SW6074 |
15,000 |
3/8" |
VEE |
3-Way,One on Pressure |
SW6075 |
15,000 |
3/8" |
VEE |
3-Way,Two Stem Manifold |
SW6081 |
15,000 |
3/8" |
REG |
3 Way Straight |
SW6082 |
15,000 |
3/8" |
REG |
3-Way Angle |
SW6083 |
15,000 |
3/8" |
REG |
3-Way,Two on Pressure |
SW6084 |
15,000 |
3/8" |
REG |
3-Way,One on Pressure |
SW6085 |
15,000 |
3/8" |
REG |
3-Way,Two Stem Manifold |
SW8071 |
10,000 |
1/2" |
VEE |
3 Way Straight |
SW8072 |
10,000 |
1/2" |
VEE |
3-Way Angle |
SW8073 |
10,000 |
1/2" |
VEE |
3-Way,Two on Pressure |
SW8074 |
10,000 |
1/2" |
VEE |
3-Way,One on Pressure |
SW8075 |
10,000 |
1/2" |
VEE |
3-Way,Two Stem Manifold |
SW8081 |
10,000 |
1/2" |
REG |
3 Way Straight |
SW8082 |
10,000 |
1/2" |
REG |
3-Way Angle |
SW8083 |
10,000 |
1/2" |
REG |
3-Way,Two on Pressure |
SW8084 |
10,000 |
1/2" |
REG |
3-Way,One on Pressure |
SW8085 |
10,000 |
1/2" |
REG |
3-Way,Two Stem Manifold |
