Parker Autoclave Needle Valves, SM Series - 20,000 PSI
Parker Autoclave SM系列針閥是一個非旋轉上升桿設計，工作壓力為20000磅/平方英寸（1379巴）。管道尺寸從1/4“到1-1/2”。閥門連接采用Parker高壓滅菌器錐形和螺紋設計。帕克高壓滅菌器的SM系列針閥是為大流量應用設計的。這些閥門有一個非旋轉上升閥桿桿料設計，工作壓力為20000磅/平方英寸（1379巴）。錐管和螺紋連接采用Parker高壓滅菌器管，尺寸從1/4“到1”。使用特殊的石墨編織紗填料（HT），工作溫度可從-423F至1200°F（-252°C至649°C）。316不銹鋼結構是標準材料，有其他選擇。這些閥門具有許多特點，可在各種應用中提供可靠和無故障的服務。

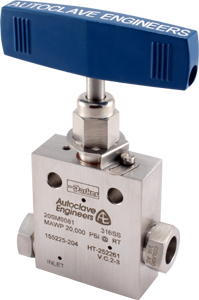

Parker Autoclave's SM Series needle valves are a non-rotating rising stem design, with working pressures to 20,000 psi (1379 bar). Tubing sizes range from 1/4" to 1-1/2".The valve connections utilize the Parker Autoclave coned and threaded design.

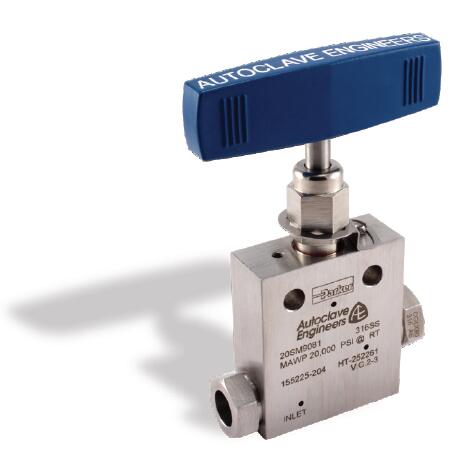

Parker Autoclave's SM Series needle valves are designed with large ports for high flow applications. These valves have a non-rotating rising stem bar stock design with working pressures to 20,000 psi (1379 bar). The cone and thread connections utilize Parker Autoclave tubing with sizes from 1/4" to 1". Operating temperatures can go from -423F to 1200°F (-252°C to 649°C) with special graphite braided yarn packing (HT). 316 stainless steel construction is the standard material with other options available. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.
Markets:
- Oil and Gas
- Petrochemical
- Chemical
- Research
Features/Benefits:
- Largest-port valves available for medium pressure applications.
- Tubing sizes available from 1/4” to 1”.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- New one piece stem design permits ease of assembly and packing replacement.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tip.
- Available in five body patterns.
Applications:
- Medium Pressure Skid Panels
- Water Blasting
- Chemical Injection Skids
- Medium Pressure Fluid Handling Systems
Related Documents
Communities, Blogs, and Industry Links
ACS
Literature and Reference Materials
SM Series Needle Valve
Part |
Maximum Working Pressure (psi) |
Outside Diameter (inch) |
Stem Type |
Valve Type |
10SM12071 |
10000 |
0.75 |
VEE |
2-Way Straight |
10SM12072 |
10000 |
0.75 |
VEE |
2-Way Angle |
10SM12073 |
10000 |
0.75 |
VEE |
3-Way / 2 on Pressure |
10SM12074 |
10000 |
0.75 |
VEE |
3-Way / 1 on Pressure |
10SM12075 |
10000 |
0.75 |
VEE |
3-Way / 2-Stem Manifold |
10SM12081 |
10000 |
0.75 |
REG |
2-Way Straight |
10SM12082 |
10000 |
0.75 |
REG |
2-Way Angle |
10SM12083 |
10000 |
0.75 |
REG |
3-Way / 2 on Pressure |
10SM12084 |
10000 |
0.75 |
REG |
3-Way / 1 on Pressure |
10SM12085 |
10000 |
0.75 |
REG |
3-Way / 2-Stem Manifold |
10SM12872 |
10000 |
0.75 |
VEE |
2-Way Angle / Replaceable Seat |
10SM12882 |
10000 |
0.75 |
REG |
2-Way Angle / Replaceable Seat |
10SM16071 |
10000 |
1 |
VEE |
2-Way Straight |
10SM16072 |
10000 |
1 |
VEE |
2-Way Angle |
10SM16073 |
10000 |
1 |
VEE |
3-Way / 2 on Pressure |
10SM16074 |
10000 |
1 |
VEE |
3-Way / 1 on Pressure |
10SM16075 |
10000 |
1 |
VEE |
3-Way / 2-Stem Manifold |
10SM16081 |
10000 |
1 |
REG |
2-Way Straight |
10SM16082 |
10000 |
1 |
REG |
2-Way Angle |
10SM16083 |
10000 |
1 |
REG |
3-Way / 2 on Pressure |
10SM16084 |
10000 |
1 |
REG |
3-Way / 1 on Pressure |
10SM16085 |
10000 |
1 |
REG |
3-Way / 2-Stem Manifold |
10SM16872 |
10000 |
1 |
VEE |
2-Way Angle / Replaceable Seat |
10SM16882 |
10000 |
1 |
REG |
2-Way Angle / Replaceable Seat |
10SM9071 |
10000 |
0.5625 |
VEE |
2-Way Straight |
10SM9072 |
10000 |
0.5625 |
VEE |
2-Way Angle |
10SM9073 |
10000 |
0.5625 |
VEE |
3-Way / 2 on Pressure |
10SM9074 |
10000 |
0.5625 |
VEE |
3-Way / 1 on Pressure |
10SM9075 |
10000 |
0.5625 |
VEE |
3-Way / 2-Stem Manifold |
10SM9081 |
10000 |
0.5625 |
REG |
2-Way Straight |
10SM9082 |
10000 |
0.5625 |
REG |
2-Way Angle |
10SM9083 |
10000 |
0.5625 |
REG |
3-Way / 2 on Pressure |
10SM9084 |
10000 |
0.5625 |
REG |
3-Way / 1 on Pressure |
10SM9085 |
10000 |
0.5625 |
REG |
3-Way / 2-Stem Manifold |
10SM9872 |
10000 |
0.5625 |
VEE |
2-Way Angle / Replaceable Seat |
10SM9882 |
10000 |
0.5625 |
REG |
2-Way Angle / Replaceable Seat |
20SM12071 |
20000 |
0.75 |
VEE |
2-Way Straight |
20SM12072 |
20000 |
0.75 |
VEE |
2-Way Angle |
20SM12073 |
20000 |
0.75 |
VEE |
3-Way / 2 on Pressure |
20SM12074 |
20000 |
0.75 |
VEE |
3-Way / 1 on Pressure |
20SM12075 |
20000 |
0.75 |
VEE |
3-Way / 2-Stem Manifold |
20SM12081 |
20000 |
0.75 |
REG |
2-Way Straight |
20SM12082 |
20000 |
0.75 |
REG |
2-Way Angle |
20SM12083 |
20000 |
0.75 |
REG |
3-Way / 2 on Pressure |
20SM12084 |
20000 |
0.75 |
REG |
3-Way / 1 on Pressure |
20SM12085 |
20000 |
0.75 |
REG |
3-Way / 2-Stem Manifold |
20SM12872 |
20000 |
0.75 |
VEE |
2-Way Angle / Replaceable Seat |
20SM12882 |
20000 |
0.75 |
REG |
2-Way Angle / Replaceable Seat |
20SM16071 |
20000 |
1 |
VEE |
2-Way Straight |
20SM16072 |
20000 |
1 |
VEE |
2-Way Angle |
Part |
Maximum Working Pressure (psi) |
Outside Diameter (inch) |
Stem Type |
Valve Type |
20SM16073 |
20000 |
1 |
VEE |
3-Way / 2 on Pressure |
20SM16074 |
20000 |
1 |
VEE |
3-Way / 1 on Pressure |
20SM16075 |
20000 |
1 |
VEE |
3-Way / 2-Stem Manifold |
20SM16081 |
20000 |
1 |
REG |
2-Way Straight |
20SM16082 |
20000 |
1 |
REG |
2-Way Angle |
20SM16083 |
20000 |
1 |
REG |
3-Way / 2 on Pressure |
20SM16084 |
20000 |
1 |
REG |
3-Way / 1 on Pressure |
20SM16085 |
20000 |
1 |
REG |
3-Way / 2-Stem Manifold |
20SM16872 |
20000 |
1 |
VEE |
2-Way Angle / Replaceable Seat |
20SM16882 |
20000 |
1 |
REG |
2-Way Angle / Replaceable Seat |
20SM4071 |
20000 |
0.25 |
VEE |
2-Way Straight |
20SM4072 |
20000 |
0.25 |
VEE |
2-Way Angle |
20SM4073 |
20000 |
0.25 |
VEE |
3-Way / 2 on Pressure |
20SM4074 |
20000 |
0.25 |
VEE |
3-Way / 1 on Pressure |
20SM4075 |
20000 |
0.25 |
VEE |
3-Way / 2-Stem Manifold |
20SM4081 |
20000 |
0.25 |
REG |
2-Way Straight |
20SM4082 |
20000 |
0.25 |
REG |
2-Way Angle |
20SM4083 |
20000 |
0.25 |
REG |
3-Way / 2 on Pressure |
20SM4084 |
20000 |
0.25 |
REG |
3-Way / 1 on Pressure |
20SM4085 |
20000 |
0.25 |
REG |
3-Way / 2-Stem Manifold |
20SM4872 |
20000 |
0.25 |
VEE |
2-Way Angle / Replaceable Seat |
20SM4882 |
20000 |
0.25 |
REG |
2-Way Angle / Replaceable Seat |
20SM6071 |
20000 |
0.375 |
VEE |
2-Way Straight |
20SM6072 |
20000 |
0.375 |
VEE |
2-Way Angle |
20SM6073 |
20000 |
0.375 |
VEE |
3-Way / 2 on Pressure |
20SM6074 |
20000 |
0.375 |
VEE |
3-Way / 1 on Pressure |
20SM6075 |
20000 |
0.375 |
VEE |
3-Way / 2-Stem Manifold |
20SM6081 |
20000 |
0.375 |
REG |
2-Way Straight |
20SM6082 |
20000 |
0.375 |
REG |
2-Way Angle |
20SM6083 |
20000 |
0.375 |
REG |
3-Way / 2 on Pressure |
20SM6084 |
20000 |
0.375 |
REG |
3-Way / 1 on Pressure |
20SM6085 |
20000 |
0.375 |
REG |
3-Way / 2-Stem Manifold |
20SM6872 |
20000 |
0.375 |
VEE |
2-Way Angle / Replaceable Seat |
20SM6882 |
20000 |
0.375 |
REG |
2-Way Angle / Replaceable Seat |
20SM9071 |
20000 |
0.5625 |
VEE |
2-Way Straight |
20SM9072 |
20000 |
0.5625 |
VEE |
2-Way Angle |
20SM9073 |
20000 |
0.5625 |
VEE |
3-Way / 2 on Pressure |
20SM9074 |
20000 |
0.5625 |
VEE |
3-Way / 1 on Pressure |
20SM9075 |
20000 |
0.5625 |
VEE |
3-Way / 2-Stem Manifold |
20SM9081 |
20000 |
0.5625 |
REG |
2-Way Straight |
20SM9082 |
20000 |
0.5625 |
REG |
2-Way Angle |
20SM9083 |
20000 |
0.5625 |
REG |
3-Way / 2 on Pressure |
20SM9084 |
20000 |
0.5625 |
REG |
3-Way / 1 on Pressure |
20SM9085 |
20000 |
0.5625 |
REG |
3-Way / 2-Stem Manifold |
20SM9872 |
20000 |
0.5625 |
VEE |
2-Way Angle / Replaceable Seat |
20SM9882 |
20000 |
0.5625 |
REG |
2-Way Angle / Replaceable Seat |
|
