派克2 通海底針閥
Parker 2-way subsea needle valve

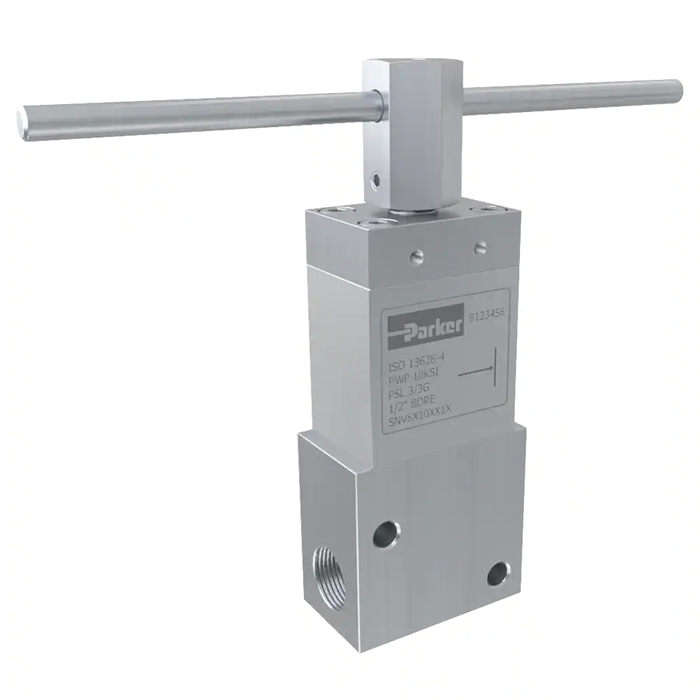

Subsea Needle valve, Non-Rising, Non-Rotating Stem
派克的非上升、非旋轉閥桿針閥專門設計用于在海底應用中提供平穩、低扭矩的性能。具有用于氣密關閉的金屬對金屬閥座、更長的閥桿/閥座壽命、更高的耐用性以適應重復開/關循環以及閥桿螺紋下方的強化 PTFE/PEEK V 形填料，可實現可靠的閥桿和閥體密封。這種海底針閥包含額外的 O 形圈密封件，可防止海水進入閥門，這會對閥門的操作產生不利影響并污染工藝流體。
單向閥有多種耐腐蝕合金可供選擇，適用于深度低至 3,050m 的設備。
這些閥門旨在促進手動或遙控車輛 ROV 的操作。
派克海底針閥的設計滿足或超過 API 17D PSL 3/3G 的嚴格鑒定測試要求。勞埃德檢驗員見證了 AP??I 17D 閥門設計驗證協議，證實了該設計的結構完整性和性能。這是在基礎 316SS 模型上進行的，包括 API 6A PR2F PSL3/3G 單向測試協議以及 API 17D 高壓測試協議。
市場：
- 上游石油和天然氣的
特性/優勢：
- 三片式螺栓連接閥蓋結構
- 單向流動
- 金屬對金屬閥座可實現氣密關閉、更長的閥桿/閥座壽命、更耐用的重復開/關循環和出色的耐腐蝕性。
- 雙 O 形環閥桿密封可防止海水和泥沙進入任何螺紋或旋轉部件
- 額外的閥蓋密封件旨在防止水和泥沙進入任何螺紋或旋轉部件
- 低摩擦、壓力輔助 PTFE/PEEK 軸密封可延長循環壽命并降低操作扭矩。填料位于閥桿螺紋下方，提供可靠的閥桿和閥體密封。
- 非上升、非旋轉閥桿可防止閥桿磨損和閥座損壞
- 設計用于接受多種類型的管子和管道端部連接
- 有多種耐腐蝕材料可供選擇
- 按照 API 17D/API 6A 標準進行設計和測試
應用：
- 海底液壓歧管
- 海底控制臍帶纜
- 海底井口和控制包
- 化學品注入
- DBB、放氣、通風口、測試管線
| Parts |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
| SNV8E106B1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8E106B1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8E106B1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E106B1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E106N1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8E106N1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8E106N1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E106N1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E108B1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8E108B1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8E108B1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E108B1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E108N1-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8E108N1-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8E108N1-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E108N1-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E10M121-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
| SNV8E10M121-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
| SNV8E10M121-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E10M121-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E10M61-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8E10M61-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8E10M61-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E10M61-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8E10M91-H |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
| SNV8E10M91-HN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
| SNV8E10M91-P |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8E10M91-PN |
12 |
Duplex Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F106B1-H |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8F106B1-HN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8F106B1-P |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F106B1-PN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F106N1-H |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8F106N1-HN |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8F106N1-P |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F106N1-PN |
12 |
Super Duplex |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F108B1-H |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8F108B1-HN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8F108B1-P |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F108B1-PN |
12 |
Super Duplex |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F108N1-H |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8F108N1-HN |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8F108N1-P |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F108N1-PN |
12 |
Super Duplex |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F10M121-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
| SNV8F10M121-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
| SNV8F10M121-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F10M121-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F10M61-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8F10M61-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
| Parts |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
| SNV8F10M61-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F10M61-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8F10M91-H |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
| SNV8F10M91-HN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
| SNV8F10M91-P |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8F10M91-PN |
12 |
Super Duplex |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M106B1-H |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8M106B1-HN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8M106B1-P |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M106B1-PN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M106N1-H |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8M106N1-HN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8M106N1-P |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M106N1-PN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M108B1-H |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8M108B1-HN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8M108B1-P |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M108B1-PN |
12 |
Inconel 625 |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M108N1-H |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8M108N1-HN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8M108N1-P |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M108N1-PN |
12 |
Inconel 625 |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M10M121-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
| SNV8M10M121-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
| SNV8M10M121-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M10M121-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M10M61-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8M10M61-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8M10M61-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M10M61-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8M10M91-H |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
| SNV8M10M91-HN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
| SNV8M10M91-P |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8M10M91-PN |
12 |
Inconel 625 |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S106B1-H |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8S106B1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8S106B1-P |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8S106B1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S106N1-H |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
N/A |
| SNV8S106N1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
Handle |
NACE certification |
| SNV8S106N1-P |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8S106N1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S108B1-H |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8S108B1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8S108B1-P |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
| SNV8S108B1-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Butt Weld |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
| SNV8S108N1-H |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
N/A |
| SNV8S108N1-HN |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
Handle |
NACE certification |
| SNV8S108N1-P |
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
|
|
12 |
316 Stainless Steel |
10,000 PSI |
NPT |
1/2" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
Parts |
Bore Diameter (mm) |
Body Material |
Maximum Pressure Rating |
Connection Type |
Connection Size |
Valve Configuration |
Options |
Additional Options |
SNV8S10M121-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
N/A |
SNV8S10M121-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M121-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M121-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/4" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S10M61-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
N/A |
SNV8S10M61-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M61-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M61-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
3/8" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
SNV8S10M91-H |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
N/A |
SNV8S10M91-HN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
Handle |
NACE certification |
SNV8S10M91-P |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
N/A |
SNV8S10M91-PN |
12 |
316 Stainless Steel |
10,000 PSI |
Cone and Thread |
9/16" |
2-way Straight |
ROV Low Torque Paddle |
NACE certification |
|
fcg.cnmec@parkerdistribution.com.cn
