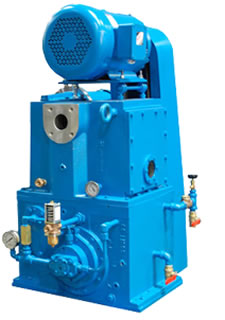

Tuthill KT型單級滑閥真空泵
凱尼KT型單級滑閥真空泵
Kinney凱尼KT型單級滑閥真空泵在高壓力或低壓力的工況下均能保持較大抽速且靜音運行，該泵是水冷系統，風冷系統供選擇。標準產品都配置可調節氣鎮閥，可以處理水蒸氣或其他蒸汽的介質。
產品特點：采用三聯滑閥設計確保泵自身動態平衡；即使運行在一些惡劣工況下，KT泵也非常的經久耐用，因為滑閥與泵腔之間充滿了油且沒有金屬與金屬間的接觸；該泵都配有正壓力潤滑系統以確保在任何壓力下都能可靠潤滑；KT泵LP系列產品具備KT泵的所有特點，此外還內置油霧分離器，采用緊湊、低重心設計。

滑閥真空泵
特點：
- 最大抽速可保持到133Pa
- 泵在1.3×104Pa及其以下任何壓力可連續工作
- 泵的極限壓力為1.33Pa(麥克勞真空計)
- 泵具有運行無振動的特點
- 結構緊湊，占地面積小
- 安裝方便，無特殊安裝要求
- 泵腔內無金屬間的接觸
- 氣鎮可調，可抽除可凝性氣體
- 泵在相對使用環境差的條件下仍可持久耐用
凱尼KT型單級滑閥真空泵型號：KT-150C, KT-300D, KT-500D, KT-850D, KT-170LP,
KT-275LP, KT-505LP, KT-840VFP, KT-1350VFP
技術參數：
型號 |
KT-150 |
KT-300 |
KT-500 |
KT-850 |
|
255 |
505 |
800 |
1325 |
|
5.5 |
11 |
22 |
30 |
|
1055 |
870 |
721 |
581 |
|
23 |
38 |
57 |
106 |
|
4 |
6 |
9 |
13 |
|
364 |
693 |
1225 |
1996 |
|
34 |
34 |
58 |
105 |
|
266 |
266 |
266 |
266 |
|
1.33 |
1.33 |
1.33 |
1.33 |
|
71 |
72 |
73 |
75 |
Model: KT150C, KT300D, KT500D, KT850D
KT Single-Stage Rotary Piston Pump
修理包Kit Lists：
- Piston Pump KT 150 Discharge Valve Assembly Kit
- Piston Pump KT 150 Essentials Kit
- Piston Pump KT 150 Gasket O-Ring Kit
- Piston Pump KT 150 Major Kit
- Piston Pump KT 150 OME Service Kit
- Piston Pump KT 150 Piston Cam Kit
- Piston Pump KT 150 Preventative Kit
- Piston Pump KT 150 Repair Kit
- Piston Pump KT 150 Slide Pin Kit
- Piston Pump KT 150 Vibramount Kit
- Piston Pump KT 275 Bearing Seal Kit
- Piston Pump KT 275 Discharge Valve Assembly Kit
- Piston Pump KT 275 Gasket O-Ring Kit
- Piston Pump KT 275 OME Service Kit
- Piston Pump KT 275 Piston Cam Kit
- Piston Pump KT 275 Repair Kit
- Piston Pump KT 275 Slide Pin Kit
- Piston Pump KT 300 50HZ Major Kit
- Piston Pump KT 300 50HZ Preventive Kit
- Piston Pump KT 300 60HZ Major Kit
- Piston Pump KT 300 60HZ Preventive Kit
- Piston Pump KT 300 Bearing Seal Kit
- Piston Pump KT 300 Discharge Valve Assembly Kit
- Piston Pump KT 300 Essentials Kit
- Piston Pump KT 300 Gasket O-Ring Kit
- Piston Pump KT 300 OME Service Kit
- Piston Pump KT 300 Piston Cam Kit
- Piston Pump KT 300 Repair Kit
- Piston Pump KT 300 Sight Glass Kit
- Piston Pump KT 300 Slide Pin Kit
- Piston Pump KT 500 Bearing Seal Kit
- Piston Pump KT 500 Discharge Valve Assembly Kit
- Piston Pump KT 500 Essentials Kit
- Piston Pump KT 500 Gasket O-Ring Kit
- Piston Pump KT 500 Major Kit
- Piston Pump KT 500 OME Service Kit
- Piston Pump KT 500 Piston Cam Kit
- Piston Pump KT 500 Preventive Kit
- Piston Pump KT 500 Repair Kit
- Piston Pump KT 500 Sight Glass Kit
- Piston Pump KT 500 Slide Pin Kit
- Piston Pump KT 500 Vibramount Kit
- Piston Pump KT 850 Bearing Seal Kit
- Piston Pump KT 850 Essentials Kit
- Piston Pump KT 850 Gasket O-Ring Kit
- Piston Pump KT 850 OME Service Kit
- Piston Pump KT 850 Piston Cam Kit
- Piston Pump KT 850 Preventative Kit
- Piston Pump KT 850 Repair Kit
- Piston Pump KT 850 Sight Glass Kit
- Piston Pump KT 850 Slide Pin Kit
- Piston Pump KT 850 Vibramount Kit
Literature
- Vacuum Pumps & Boosters Brochure TH-004
- Vacuum Pumps & Boosters Brochure TH-004SP SPANISH
Product Manuals
- KT Manual
- KT VFP Manual
Specification Sheets
- KT Series TH-025
KMBD540＋KT150羅茨滑閥機組在多晶硅太陽能電池行業的應用
多晶硅：多晶硅鑄錠爐要求爐內的極限壓力亦必須抽到1 Pa以下，美國GT Solar公司配置的真空機組是KMBD540羅茨泵加上KT-150單級滑閥泵，機組的極限壓力可達1ｘ10-2Pa。由于多晶硅生產廠都是將幾十臺甚至于上百臺爐子集中在一個封閉的空調廠房內，所以對真空機組的振動和噪聲要求極為限嚴格，而且要求真空機組在連續60小時下運行無故障。
由于KMBD540＋KT150羅茨滑閥機組體積小、重量輕、噪聲低、無振動、可靠性好，所以現在國內外所有多晶硅鑄錠爐基本上都是采用Tuthill公司生產的羅茨滑閥機組。
典型應用： 真空包裝、真空熔爐、真空鍍膜、空間模擬
Applications: Vacuum Packaging, Vacuum Furnaces, Vacuum Coating
真空包裝
真空熔爐
真空鍍膜
型號 CFM/m3 /h HP/kW
KT-170LP 100/170 5/3.7
KT-150C 144/245 7.5/5.5
KT-275LP 160/272 10/7.5
KT-300D 296/503 15/11
KT505LP 296/503 15/11
KT-500D 484/822 30/22
KT-840VFP 484/822 30/22
KT-850D 778/1322 40/30
KT-1350VFP 778/1322 40/30
