派克 E / EB系列聚乙烯儀表級管
Parker E and EB Series Polyethylene Instrument Grade Tubing

派克聚乙烯PE管由高分子量樹脂制成，可提供更高的尺寸穩定性，均勻性和長期強度。Parker PE管滿足食品接觸應用的FDA和NSF-51要求，以及飲用水的NSF-61要求。線性低密度聚乙烯（LLDPE）管由100％純樹脂材料制成，適用于水，食品，飲料和食品級應用。該管道可用于通用儀器應用以及所有食物處理應用，除了在烹飪過程中保持食物外。黑色管EB系列包含紫外線抑制劑，建議在陽光照射的區域以及緊靠高紫外線光源的地方使用紫外線抑制劑。標準黑色未獲準用于食品處理應用，但可以根據特殊要求訂購NSF認證和FDA兼容的黑色。為了最大的保持力，應在該管上使用管支撐，以免發生端部載荷，振動或壓力峰值。

派克 E / EB系列聚乙烯儀表級管
Parker E and EB Series Polyethylene Instrument Grade Tubing

市場

- 水市場
- 食品和飲料
- 流體處理
- 工業氣動
- 化學傳遞

特性

- 由100％ 純樹脂材料制成，具有長期強度- ASTM D-1693（10％IGEPAL）具有出色的抗應力開裂性，可最大限度地延長使用壽命
- 紫外線穩定，可減少日光下的褪色，開裂和強度損失
- 符合FDA，NSF-51食品接觸應用要求和NSF-61飲用水要求

應用范圍：

- 飲用水
- 飲料分配器
- 化學傳遞
- 低壓氣動裝置

認證/合規性：

- 符合FDA的食品接觸要求- 符合 ASTM D-1693（10％IGEPAL）的抗應力開裂性
- ASTM D-1248，I型，A級，類別4，E5級
- NSF – 51
- NSF – 61

注意：

- 符合Parker流體系統連接器部門的要求（特定配件請參閱PFD目錄CAT.4660或FSC目錄CAT3501E USA）

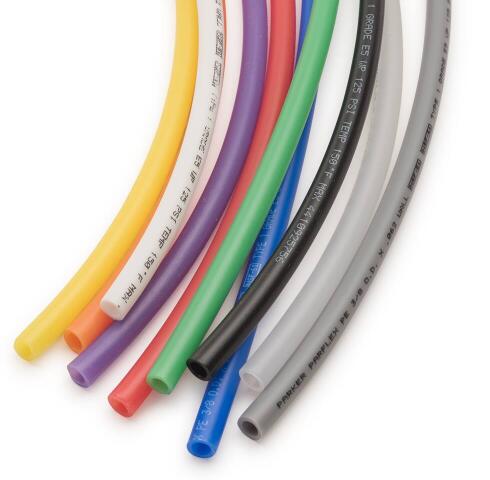

- 不透明的顏色有黑色，藍色，灰色，綠色，橙色，紫色，紅色，白色和黃色
- 黑色（EB）管道包含紫外線抑制劑，建議在日光照射區域和高紫外線光源附近使用
- 在額定壓力下使用兼容的流體，建議的工作溫度范圍為-80°F（-62°F） C）到+ 150°F（+ 66°C）
- 該管應與管支撐一起使用，以在端部負載，振動或壓力最大的情況下保持功率
- 壁厚僅供參考

性能特點

最大工作壓力8.6巴
125磅/平方英寸
最小彎曲半徑1-4英寸
25至101.6毫米
管內徑4-13毫米
0.170-1/2英寸
管外徑1 / 4、5 / 16、3 / 8、1 / 2、5 / 8英寸
6、8、10、13、16毫米
符合規格ASTM D-1693；符合FDA NSF-51；NSF-61
應用流體處理，化學傳遞，氣動，水
顏色自然，黑色，藍色，灰色，綠色，橙色，紫色，紅色，白色，黃色
管壁厚度0.040或0.062英寸
1至1.6毫米
最小爆破壓力280至580 psi
19.3至40巴
最低工作溫度-80°華氏度
-62°攝氏度
最高工作溫度150°華氏度
66°攝氏度
媒體空氣，飲用水，水，化學藥品
兼容配件Dubl-Barb?，流量控制，Prestolok，Liquifit，TrueSeal，壓縮，Compress-Align?，Poly-Tite，高負荷，快速和Tite
管材聚乙烯
每包長度100、500或1000英尺

• Product Type: Polyethylene Tubing
• Manufacturer: Parker Parflex
• Product Family: Series E
• Length: 100 ft.
• Materials: Polyethylene Tubing
• Tubing Rating: Instrument Grade
• Tubing Size: 1/4 in.
• Wall Thickness: 0.040 in.
• Working Pressure: 120 PSI @73°F

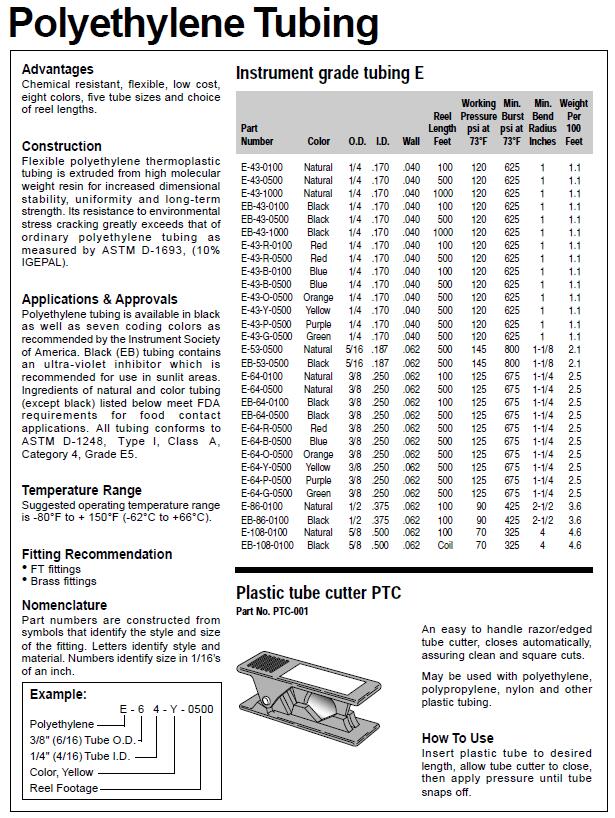

Part Length psi at psi at Radius 100 Number Color O.D. I.D. Wall Feet 73°F 73°F Inches Feet E-43-0100 Natural 1/4 .170 .040 100 120 625 1 1.1 E-43-0500 Natural 1/4 .170 .040 500 120 625 1 1.1 E-43-1000 Natural 1/4 .170 .040 1000 120 625 1 1.1 EB-43-0100 Black 1/4 .170 .040 100 120 625 1 1.1 EB-43-0500 Black 1/4 .170 .040 500 120 625 1 1.1 EB-43-1000 Black 1/4 .170 .040 1000 120 625 1 1.1 E-43-R-0100 Red 1/4 .170 .040 100 120 625 1 1.1 E-43-R-0500 Red 1/4 .170 .040 500 120 625 1 1.1 E-43-B-0100 Blue 1/4 .170 .040 100 120 625 1 1.1 E-43-B-0500 Blue 1/4 .170 .040 500 120 625 1 1.1 E-43-O-0500 Orange 1/4 .170 .040 500 120 625 1 1.1 E-43-Y-0500 Yellow 1/4 .170 .040 500 120 625 1 1.1 E-43-P-0500 Purple 1/4 .170 .040 500 120 625 1 1.1 E-43-G-0500 Green 1/4 .170 .040 500 120 625 1 1.1 E-53-0500 Natural 5/16 .187 .062 500 145 800 1-1/8 2.1 EB-53-0500 Black 5/16 .187 .062 500 145 800 1-1/8 2.1 E-64-0100 Natural 3/8 .250 .062 100 125 675 1-1/4 2.5 E-64-0500 Natural 3/8 .250 .062 500 125 675 1-1/4 2.5 EB-64-0100 Black 3/8 .250 .062 100 125 675 1-1/4 2.5 EB-64-0500 Black 3/8 .250 .062 500 125 675 1-1/4 2.5 E-64-R-0500 Red 3/8 .250 .062 500 125 675 1-1/4 2.5 E-64-B-0500 Blue 3/8 .250 .062 500 125 675 1-1/4 2.5 E-64-O-0500 Orange 3/8 .250 .062 500 125 675 1-1/4 2.5 E-64-Y-0500 Yellow 3/8 .250 .062 500 125 675 1-1/4 2.5 E-64-P-0500 Purple 3/8 .250 .062 500 125 675 1-1/4 2.5 E-64-G-0500 Green 3/8 .250 .062 500 125 675 1-1/4 2.5 E-86-0100 Natural 1/2 .375 .062 100 90 425 2-1/2 3.6 EB-86-0100 Black 1/2 .375 .062 100 90 425 2-1/2 3.6 E-108-0100 Natural 5/8 .500 .062 100 70 325 4 4.6 EB-108-0100 Black 5/8 .500 .062 Coil 70 325 4 4.6

Linear Low Density Polyethylene (LLDPE) tubing is made from 100% virgin resin material for water, food, beverages and food grade applications.

Parker polyethylene (PE) tubing is produced from a high molecular weight resin to provide increased dimensional stability, uniformity and long-term strength. Parker PE tubing meets the FDA and NSF-51 requirements for food contact applications and NSF-61 for potable water.

The tubing may be used in general-purpose instrument applications as well as all food handling applications except holding food during cooking. The black tubing, EB series, contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high, ultraviolet light sources.
Standard black is not approved for food handling applications, but NSF-listed and FDA-compliant black can be ordered on special request. A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure spikes may occur.

Markets
- Water Market
- Food & Beverage
- Fluid Handling
- Industrial Pneumatics
- Chemical transfer

Features
- Made from 100% virgin resin material for long term strength
- ASTM D-1693 (10% IGEPAL) For excellent stress crack resistance maximizes the service life
- UV stabilized to reduce fading, cracking and loss of strength from sunlight
- Meets FDA, NSF-51 requirements for food contact applications and NSF-61 for potable water

Applications:
- Potable water
- Beverage dispensers
- Chemical transfer
- Low pressure pneumatics

Certifications/Compliance:
- FDA compliant for food contact
- ASTM D-1693 (10% IGEPAL) for stress crack resistance
- ASTM D-1248, Type I, Class A, Category 4, Grade E5
- NSF – 51
- NSF – 61

Notes:
- Qualified with Parker Fluid System Connectors Division (See PFD Catalog CAT. 4660 or FSC Catalog CAT3501E USA for specific fittings)
- Opaque colors are available in black, blue, gray, green, orange, purple, red, white and yellow
- Black (EB) tubing contains an ultraviolet inhibitor which is recommended for use in sunlit areas and in close proximity to high ultraviolet light source
- The recommended operating temperature range for service at rated pressures with compatible fluids is -80°F (-62°C) to +150°F (+66°C)
- A tube support should be used with this tubing for maximum holding power where end loading, vibration or pressure
- Wall thickness is for reference only

-
