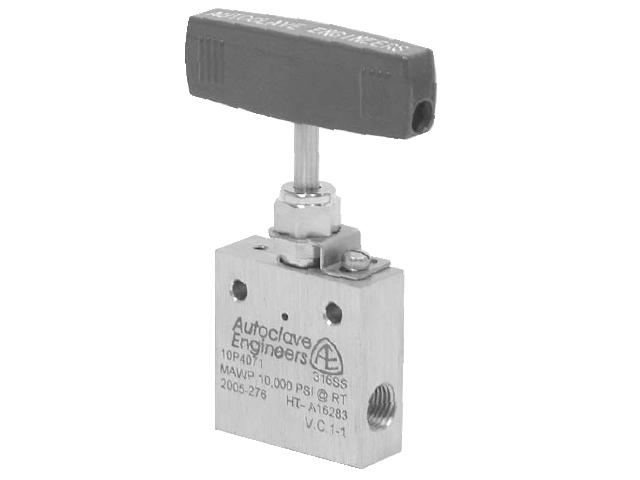

P Series Pipe Low Pressure Needle Valves
P Series Pipe Low Pressure Needle Valves on Autoclave Engineers, Fluid Components Div. Of Snap-tite Inc.
P 系列 （15000psi）
無旋轉設計，避免閥桿和閥座磨損和咬合；
規格型號：1/4″— 1″；
工作溫度：-17°C — 204°C；
材質：316不銹鋼。
Pipe Valve Features:
- P Series valve design provides in-line pipe connections for 1/4” to 1” pipe sizes.1/8 connections offset.
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling (1/8" NPT rotating stem design).
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Choice of Vee or Regulating stem tips.
- Operating temperature range from 0°F (-17°C) to 400°F (204°C).
Autoclave valves are complemented by a complete line of fittings, tubing, check valves and line filters.
Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
| Item # |
Pressure Rating at Room Temperature |
Pipe Size |
Stem Type |
Valve Pattern |
Connection Type |
Orifice Diameter |
| 15P2001 |
15000 psi
1034 bar |
1/8 in
3.18 mm |
VEE |
2-Way Straight |
Pipe |
0.078 in
1.98 mm |
| 15P2011 |
15000 psi
1034 bar |
1/8 in
3.18 mm |
REG |
2-Way Straight |
Pipe |
0.078 in
1.98 mm |
| 15P4071 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
VEE |
2-Way Straight |
Pipe |
0.203 in
5.16 mm |
| 15P4081 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
REG |
2-Way Straight |
Pipe |
0.203 in
5.16 mm |
| 15P6071 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
VEE |
2-Way Straight |
Pipe |
0.219 in
5.56 mm |
| 15P6081 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
REG |
2-Way Straight |
Pipe |
0.219 in
5.56 mm |
| 15P8071 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
VEE |
2-Way Straight |
Pipe |
0.312 in
7.92 mm |
| 15P8081 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
REG |
2-Way Straight |
Pipe |
0.312 in
7.92 mm |
| 10P12071 |
10000 psi
690 bar |
3/4 in
19.05 mm |
VEE |
2-Way Straight |
Pipe |
0.438 in
11.13 mm |
| 10P12081 |
10000 psi
690 bar |
3/4 in
19.05 mm |
REG |
2-Way Straight |
Pipe |
0.438 in
11.13 mm |
| 10P16071 |
10000 psi
690 bar |
1 in
25.4 mm |
VEE |
2-Way Straight |
Pipe |
0.562 in
14.27 mm |
| 10P16081 |
10000 psi
690 bar |
1 in
25.4 mm |
REG |
2-Way Straight |
Pipe |
0.562 in
14.27 mm |
| 15P2002 |
15000 psi
1034 bar |
1/8 in
3.18 mm |
VEE |
2-Way Angle |
Pipe |
0.078 in
1.98 mm |
| 15P2012 |
15000 psi
1034 bar |
1/8 in
3.18 mm |
REG |
2-Way Angle |
Pipe |
0.078 in
1.98 mm |
| 15P4072 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
VEE |
2-Way Angle |
Pipe |
0.203 in
5.16 mm |
| 15P4082 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
REG |
2-Way Angle |
Pipe |
0.203 in
5.16 mm |
| 15P6072 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
VEE |
2-Way Angle |
Pipe |
0.219 in
5.56 mm |
| 15P6082 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
REG |
2-Way Angle |
Pipe |
0.219 in
5.56 mm |
| 15P8072 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
VEE |
2-Way Angle |
Pipe |
0.312 in
7.92 mm |
| 15P8082 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
REG |
2-Way Angle |
Pipe |
0.312 in
7.92 mm |
| 10P12072 |
10000 psi
690 bar |
3/4 in
19.05 mm |
VEE |
2-Way Angle |
Pipe |
0.438 in
11.13 mm |
| 10P12082 |
10000 psi
690 bar |
3/4 in
19.05 mm |
REG |
2-Way Angle |
Pipe |
0.438 in
11.13 mm |
| 10P16072 |
10000 psi
690 bar |
1 in
25.4 mm |
VEE |
2-Way Angle |
Pipe |
0.562 in
14.27 mm |
| 10P16082 |
10000 psi
690bar |
1 in
25.4 mm |
REG |
2-Way Angle |
Pipe |
0.562 in
14.27 mm |
| 15P4073 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
VEE |
3-Way / 2 on Pressure |
Pipe |
0.203 in
5.16 mm |
| 15P4083 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
REG |
3-Way / 2 on Pressure |
Pipe |
0.203 in
5.16 mm |
| 15P6073 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
VEE |
3-Way / 2 on Pressure |
Pipe |
0.219 in
5.56 mm |
| 15P6083 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
REG |
3-Way / 2 on Pressure |
Pipe |
0.219 in
5.56 mm |
| 15P8073 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
VEE |
3-Way / 2 on Pressure |
Pipe |
0.312 in
7.92 mm |
| 15P8083 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
REG |
3-Way / 2 on Pressure |
Pipe |
0.312 in
7.92 mm |
| 10P12073 |
10000 psi
690 bar |
3/4 in
19.05 mm |
VEE |
3-Way / 2 on Pressure |
Pipe |
0.438 in
11.13 mm |
| 10P12083 |
10000 psi
690 bar |
3/4 in
19.05 mm |
REG |
3-Way / 2 on Pressure |
Pipe |
0.438 in
11.13 mm |
| 10P16073 |
10000 psi
690 bar |
1 in
25.4 mm |
VEE |
3-Way / 2 on Pressure |
Pipe |
0.562 in
14.27 mm |
| 10P16083 |
10000 psi
690 bar |
1 in
25.4 mm |
REG |
3-Way / 2 on Pressure |
Pipe |
0.562 in
14.27 mm |
| 15P4074 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
VEE |
3-Way / 1 on Pressure |
Pipe |
0.203 in
5.16 mm |
| 15P4084 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
REG |
3-Way / 1 on Pressure |
Pipe |
0.203 in
5.16 mm |
| 15P6074 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
VEE |
3-Way / 1 on Pressure |
Pipe |
0.219 in
5.56 mm |
| 15P6084 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
REG |
3-Way / 1 on Pressure |
Pipe |
0.219 in
5.56 mm |
| 15P8074 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
VEE |
3-Way / 1 on Pressure |
Pipe |
0.312 in
7.92 mm |
| 15P8084 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
REG |
3-Way / 1 on Pressure |
Pipe |
0.312 in
7.92 mm |
| 10P12074 |
10000 psi
690 bar |
3/4 in
19.05 mm |
VEE |
3-Way / 1 on Pressure |
Pipe |
0.438 in
11.13 mm |
| 10P12084 |
10000 psi
690 bar |
3/4 in
19.05 mm |
REG |
3-Way / 1 on Pressure |
Pipe |
0.438 in
11.13 mm |
| 10P16074 |
10000 psi
690 bar |
1 in
25.4 mm |
VEE |
3-Way / 1 on Pressure |
Pipe |
0.562 in
14.27 mm |
| 10P16084 |
10000 psi
690 bar |
1 in
25.4 mm |
REG |
3-Way / 1 on Pressure |
Pipe |
0.562 in
14.27 mm |
| 15P4075 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
VEE |
3-Way/2-Stem Manifold |
Pipe |
0.203 in
5.16 mm |
| 15P4085 |
15000 psi
1034 bar |
1/4 in
6.35 mm |
REG |
3-Way/2-Stem Manifold |
Pipe |
0.203 in
5.16 mm |
| 15P6075 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
VEE |
3-Way/2-Stem Manifold |
Pipe |
0.219 in
5.56 mm |
| 15P6085 |
15000 psi
1034 bar |
3/8 in
9.53 mm |
REG |
3-Way/2-Stem Manifold |
Pipe |
0.219 in
5.56 mm |
| 15P8075 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
VEE |
3-Way/2-Stem Manifold |
Pipe |
0.312 in
7.92 mm |
| 15P8085 |
15000 psi
1034 bar |
1/2 in
12.70 mm |
REG |
3-Way/2-Stem Manifold |
Pipe |
0.312 in
7.92 mm |
| 10P12075 |
10000 psi
690 bar |
3/4 in
19.05 mm |
VEE |
3-Way/2-Stem Manifold |
Pipe |
0.438 in
11.13 mm |
| 10P12085 |
10000 psi
690 bar |
3/4 in
19.05 mm |
REG |
3-Way/2-Stem Manifold |
Pipe |
0.438 in
11.13 mm |
| 10P16075 |
10000 psi
690 bar |
1 in
25.4 mm |
VEE |
3-Way/2-Stem Manifold |
Pipe |
0.562 in
14.27 mm |
| 10P16085 |
10000 psi
690 bar |
1 in
25.4 mm |
REG |
3-Way/2-Stem Manifold |
Pipe |
0.562 in
14.27 mm |
|
