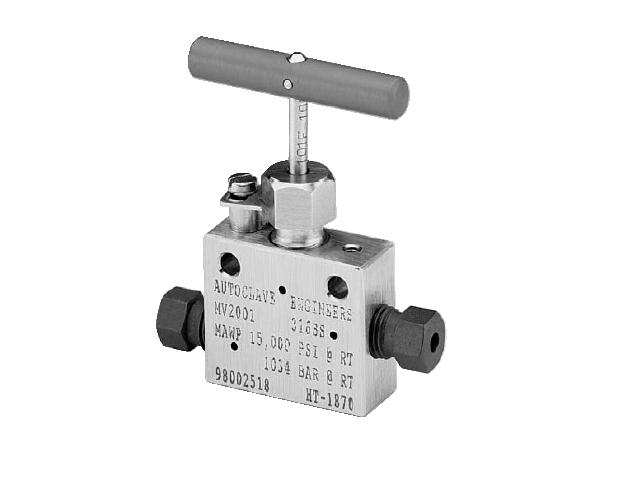

Mini （MVE 、MV）系列 （15000psi）

規格型號：1/16″— 1/8″；
工作溫度：-17.8°C — 43°C；
連接方式：單卡套；
材質：316不銹鋼。

Mini Valve Features:

• Mini valve provides a rugged compact design.
• Tubing sizes available are 1/16” and 1/8”.
• Rising stem/barstock body design.
• Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
• PTFE (Teflon glass) encapsulated packing provides dependable stem and body sealing.
• Stem and packing gland design have been selected to achieve extended thread cycle life and reduced handle torque.
• Vee stem tip provided.
• Available in five body patterns.
• Mini valves available with metric tube glands.

Autoclave valves are complemented by a complete line of mini fittings and tubing. The MVE/MV Series uses Autoclave's SpeedBite connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reliable bubble-tight performance in liquid or gas service.

MVE Series valves are furnished complete with connection components, unless otherwise specified.

Panel mounting screws are M3.5 x .6 thd.
Tube glands are 3/8” hex on standard MVE models
Tube glands are 10mm hex on MV models.

All dimensions for reference only and subject to change.
