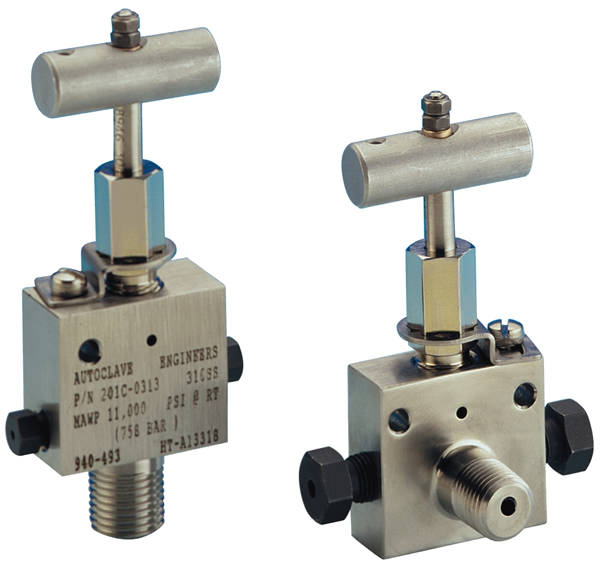

Bottle Valve Features
- BTV Series valve design provides male inlet connections from 1/8" to 1/2" NPT.
- Outlet connections in NPT or tube to 1/4".
- Rising stem/barstock body design.
- Non-rotating stem prevents stem/seat galling.
- Metal-to-metal seating achieves bubble-tight shutoff, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- PTFE (Teflon) encapsulated packing provides dependable stem and body sealing.
- Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
- Available with Vee stem tips.
- Available in five body patterns.
Autoclave valves are complemented by a complete line of low pressure fittings, tubing, check valves and line filters. The Bottle Valve Series use Autoclave's SpeedBite connection. This single-ferrule compression sleeve connection delivers fast, easy make-up and reliable bubble-tight performance in liquid or gas service.
All dimensions for reference only and subject to change.
For prompt service, Autoclave stocks select products. Consult factory.
All general terms and conditions of sale, including limitations of our liability, apply to all products and services sold.
| Item # |
Pipe/Tube |
Stem Type |
Valve Pattern |
Connection Type |
Orifice Diameter |
| BTV4S4P1 |
1/4 in
6.35 mm |
VEE |
2-Way Straight |
Pipe |
0.094 in
2.39 mm |
| BTV4F2L1 |
1/4 in
6.35 mm |
VEE |
2-Way Straight |
Tube |
0.094 in
2.39 mm |
| BTV4B2L2 |
1/8 in
3.18 mm |
VEE |
2-Way Angle |
Tube |
0.094 in
2.39 mm |
| BTV4B4P2 |
1/4 in
6.35 mm |
VEE |
2-Way Angle |
Pipe |
0.203 in
5.16 mm |
| BTV4F2L3 |
1/8 in
3.18 mm |
VEE |
3-Way/2 on Pressure |
Tube |
0.094 in
2.39 mm |
| BTV4F2L4 |
1/8 in
3.18 mm |
VEE |
3-Way/1 on Pressure |
Tube |
0.094 in
2.39 mm |
|
