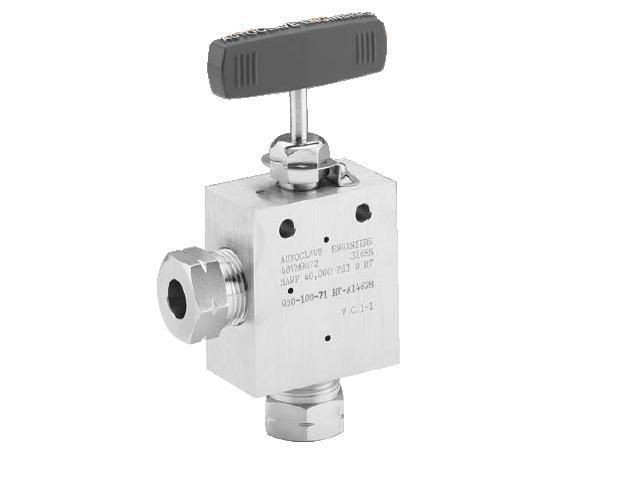

40VM Series High Pressure Needle Valves

• Tubing size availabel is 9/16”.
• Non-rotating stem prevents stem/seat galling.
• 40,000 PSI (2760 bar) max pressure rating
• Metal-to-metal seating achieves bubble-tight shut- off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
• For dependable stem and body sealing the 40VM valves feature nylon/leather packing below threads.
• Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque.
• Choice of Vee or Regulating stem tips.

Autoclave valves are complemented by a complete line of high pressure fittings and tubing. The high pressure series uses Autoclave's coned-and-threaded connections for dependable performance in gas or liquid service.

The 40VM Series valves are furnished complete with connection components, unless otherwise specified.

Panel mounting drill size: 0.22" all valves.
All dimensions for reference only and subject to change.
For prompt service 'Autoclave stocks select products' Consult factory.
