D2000系列干式快換接頭

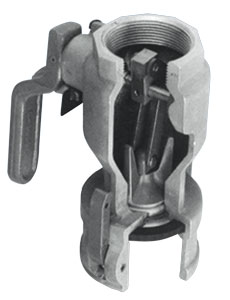

D2000™ Actuator Series Dry Disconnect Coupler
OPW D2000系列執行機構是專為只需要從一個流動方向進行自動關閉的應用用途而設計的。用于油氣回收和自吸泵送類的用途特別適用。The OPW Kamvalok D2000™ Actuator Series is designed for those applications that require automatic closure from only one flow direction. Ideal for vapor recovery and suction pump applications.
D2000™ Actuator Series Dry Disconnect Coupler_PDF下載
優點
- 使用方便—采用杠桿操縱的單一提升閥結構使開關操作十分平滑、方便
- 可靠性和耐用性—采用高強度鋁合金或不銹鋼結構材質（耐腐蝕強度可與304不銹鋼相比）
- 漏液量少的脫卸閥門—便于清洗，使用方便，結構優良，成本低廉
特性
單一提升閥設計結構
可提供不銹鋼或鋁合金兩種材質—密封材料則包括Buna-N、Viton、EPT、Teflon和Chemraz等許多種。
凸輪和滑槽結構—可采用360°的對接取向，聯接和脫卸十分平滑和方便
能與Kanvalok陽端接頭兼容使用
OPW D2000 Actuator Series Ordering Specifications
Stainless Steel D2000? Couplers - Female NPT
產品型號
|
Size/Description |
| 2271D-SS15 |
1-1/2" Stainless Steel, Buna Seals |
| 2271D-SS20 |
2" Stainless Steel, Buna Seals |
| 2272D-SS15 |
1-1/2" Stainless Steel, Viton? Seals |
| 2272D-SS20 |
2" Stainless Steel, Viton? Seals |
| 2274D-SS15 |
1-1/2" Stainless Steel, EPT Seals |
| 2274D-SS20 |
2" Stainless Steel, EPT Seals |
| 2275D-SS15 |
1-1/2" Stainless Steel, Teflon? & Kalrez? Seals |
| 2275D-SS20 |
2" Stainless Steel, Teflon? & Kalrez? Seals |
Aluminum D2000 Couplers - Female NPT
產品型號
|
Size/Description |
| 2261D-AL15 |
1-1/2" Aluminum, Buna Seals |
| 2261D-AL20 |
2" Aluminum, Buna Seals |
| 2262D-AL15 |
1-1/2" Aluminum, Viton? Seals |
| 2262D-AL20 |
2" Aluminum, Viton? Seals |
| 2264D-AL15 |
1-1/2" Aluminum, EPT Seals |
| 2264D-AL20 |
2" Aluminum, EPT Seals |
| 2265D-AL15 |
1-1/2" Aluminum, Teflon? Silicone Seals |
| 2265D-AL20 |
2" Aluminum, Teflon? Silicone Seals |
|
