Eaton Launches New Hansen EP Series Plastic Coupling
EP系列塑料快速接頭

EATON伊頓的EP系列是一種快速連接塑料材質的快插拔接頭。具有優越的流體流動性與操作性，適合許多塑料管材應用的場合Eaton’s EP Series is a quick connect plastic coupling that provides superior flow performance with an ease and resiliency suitable for many plastic tubing applications.

Eaton is proud to introduce EP Series plastic quick connect coupling, our latest innovation focused on the medical and food and beverage market. Leveraging our long history of innovation and quick connect coupling development, Eaton has developed a plastic quick connect coupling that is easy to use and dependable.

特點和優勢：

- Single mold barb design eliminates leak points單模具倒鉤設計消除了漏氣點
- Ergonomic design allows for easier grip while connecting人體工學設計允許更容易連接
- Barb design provides greater resistance to tubing pull off倒鉤的設計提供了更大的阻力防止意外斷開
- 尺寸：1/4 (6.4 mm) & 3/8 (9.5 mm)
- 材質： plastic material options that include Acetal or Polypropylene塑料材料的選項包括縮醛、聚丙烯
- 溫度范圍：temperature range is -40°C +82°C (-40°F +180°F)
- 密封：EPDM seals

Potential applications include產品應用：

- Chemical/Inkjet 化學/噴墨
- Medical Equipment醫療器械
- Material Handling材料處理
- Food and Beverage, and Fluid食品飲料，液體

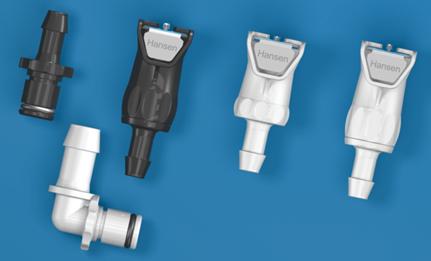

The EP Series is currently available in hose barb sizes ranging from 1/4″ (6.4 mm) up to 3/8″ (9.5 mm) and are available in both black and white color options. This product line comes with plastic material options that include Acetal or Polypropylene.

The EP Series quick connect couplings are offered in package quantities of ten (10). A sample kit is also available that provides a selection of the different sizes and couplings that are available.

The EP Series is currently available in 1/4 (6.4 mm) & 3/8 (9.5 mm) hose barb sizes and is available in black or natural Acetal and white Polypropylene with EPDM seals. Working pressure is 8 bar (120 psi) and temperature range is -40°C +82°C (-40°F +180°F).

The EP Series quick connect couplings are offered in both 10 pack quantities and in a full sample kit with a selection of all the different sizes and connections.

For detailed product information related to EP Series quick connect couplings, including specific part numbers, please see Eaton leaflet attached (link below) and also available on the product literature library website.

If you have any questions regarding the new EP Series product, please contact your local Eaton Area Sales Manager, Eaton Hansen-Gromelle inside sales representative, or myself.
