Parker Autoclave's 150V Series needle valves 超高壓針閥 - 150V 系列 150,000 PSI | #150V5072
Needle Valve, High Pressure - 150V Series 150,000 PSI
Parker 針閥 - Parker Needle Valves

派克 Autoclave 的 150V 系列針閥采用非旋轉升桿設計，工作壓力為 150,000 psi (10350 bar)，帶 5/16” ” 端接。這些閥門是由高強度 15-5PH 不銹鋼制成的圓柱形閥體。派克 Autoclave 的 150V 系列針閥采用高強度 15-5PH 不銹鋼圓柱體設計，采用非旋轉上升閥桿設計，采用鎳馬氏體時效鋼可更換閥座。這些特種閥門可在高達 150,000 psi (10350 bar) 的壓力下運行。管道尺寸僅提供 5/16”。管道連接采用派克 Autoclave 錐體和螺紋設計。

除了它們的許多功能外，這些閥門還可以在各種應用中提供可靠且無故障的服務。

Needle Valve High Pressure Cone & Thread 60,000 psi, 100,000 psi, 150,000 psi
30SC, 43SC, 30VM, 40VM, 60VM, 100VM, and 150V Series

市場：
- 石油和天然氣
- 研究

特點/優勢：
- 管道尺寸 5/16”。
- 非旋轉閥桿可防止閥桿/閥座磨損。
- 上升桿/棒材主體設計。
- 金屬對金屬閥座可實現氣密關閉、更長的閥桿/閥座在磨料流中的使用壽命、更高的重復開/關循環的耐用性和出色的耐腐蝕性。
- 高強度15-5PH 不銹鋼圓柱體，帶不銹鋼填料壓蓋。工具鋼非旋轉閥桿，帶鎳馬氏體時效鋼可更換閥座。閥桿必須用扭矩扳手驅動（請參閱工具、安裝、操作和維護部分）。
- 閥桿螺紋下方的楔形聚四氟乙烯和皮革填料，帶有鈹銅高壓釜抗擠壓支撐環。
- 僅限 V 形閥桿尖端

應用：

- 高壓面板
- 高壓流體處理系統

超高壓針閥型號150V5072 Needle Valve, High Pressure - 150V Series 150,000 PSI

技術規格

• 最大工作壓力： 10,342 巴，150,000 磅/平方英寸
• 管外徑： 5/16" 英寸，7.93 毫米
• 閥桿類型： VEE
• 閥門類型： 2向角/可更換座椅
• 連接類型： F312C150
• 孔徑： 0.062" 英寸，1.57 毫米

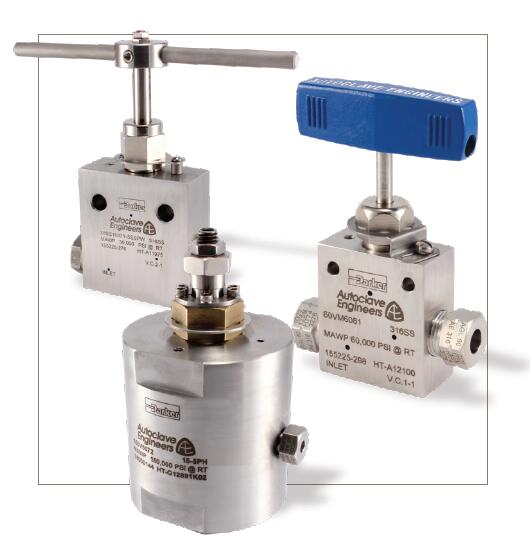

Parker Autoclave's 150V Series needle valves are a non-rotating rising stem design, with working pressures to 150,000 psi ( 10350 bar) with 5/16” ” end connections. These valves are a cylindrical body of high strength 15-5PH Stainless Steel. Parker Autoclave's 150V Series needle valves are cylindrical body design of high strength 15-5PH stainless steel with a non-rotating rising stem design that utilizes a replaceable seat of nickel maraging steel. These specialty valves operate in pressures up to 150,000 psi (10350 bar). The tubing size is only available in 5/16”. Tubing connections utilize the Parker Autoclave cone and thread design. Along with their many features these valves provide dependable and trouble free service in wide variety of applications.

Markets:
- Oil and Gas
- Research

Features/Benefits:
- Tubing size 5/16”.
- Non-rotating stem prevents stem/seat galling.
- Rising stem/barstock body design.
- Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles and excellent corrosion resistance.
- Cylindrical body of high strength 15-5PH stainless steel with stainless steel packing gland. Tool steel nonrotating stem with replaceable seat of nickel maraging steel. Stem must be actuated with torque wrench (refer to Tools, Installation, Operation and Maintenance section).
- Wedge-type PTFE and leather packing below stem threads with beryllium-copper Autoclave Anti-Extrusion Back up Rings.
- Vee stem tip only


Applications:
- High Pressure Panels
- High Pressure Fluid Handling Systems

Technical Specifications
