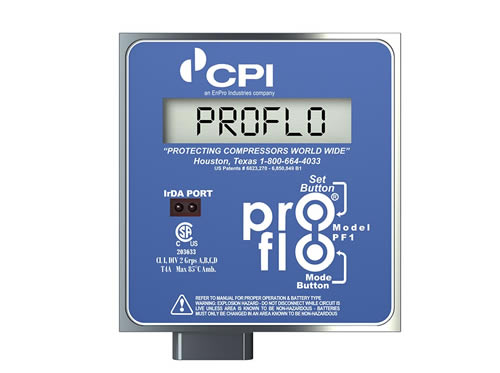

Proflo Model PF1

The Proflo PF1 monitoring device provides shutdown protection for your compressor and collects operation data by monitoring the cycle times of the divider block system. If the pump fails or the cycle time of the divider block system slows down or speeds up, the Proflo PF1 will alert the you by displaying the changed cycle time on the LCD display. If the pump deteriorates, the cycle time will slow down and the Proflo PF1 will change to alarm state and shut down the compressor, preventing damage to the compressor cylinders, pistons, rods and packing. The system data can be retrieved and analyzed using our Proflo? USB-IR adaptor and Proflo? Assist software.

Products & Services Proflo/Monitoring Devices Proflo Model PF1
Proflo Model PF1

Feature

Trends and stores divider block system operation to monitor:
Oil consumption / over- and under-lubrication
Lubricator pump failure
Divider block failure
Compressor component failure (rings, rods, packing and cylinders)
Compressor run time
Shuts down compressor when lubrication system fails or begins to deteriorate
Adjustable alarm time (20 seconds to 255 seconds)
Installs on divider block or in control panel
Wireless (IRDA) download of trending information to your computer using the Proflo? USB-IR Adaptor
Field replaceable battery
Proflo? PF1 24V Model:

Uses 2 “AA” Lithium batteries* for back-up power to the microprocessor when the control panel is turned off or the power fails
Battery life is approximately 24 months
* Use L91 Energizer Lithium “AA” only

Specifications

Aluminum or stainless housing
Temperature range -40°F to 185°F
Switch rating: 30 VDC - 200 mA max
Epoxy: resin labs EP1295
Alarm time:
2 minute standard (LED)
3 minute standard (LED)
