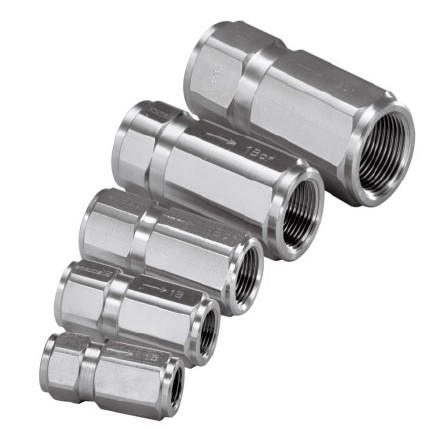

EATON Gromelle 格羅梅爾 R4000系列單向閥
Gromelle 格羅梅爾 R4000系列止回閥用于液壓線路。該系列產品堅固可靠，壓降小且配有彈性體單向閥密封件，可實現無泄露操作。可選尺寸為1/4”至1/2”。Eaton R4000 Series steel check valves are designed for multipurpose hydraulic applications to either allow flow of fluid
in one direction only or limit the line’s internal pressure to the cracking pressure. Standard cracking pressures are 0.5 and 1 bar (7.25 and 14.5 psi). Alternatives can be offered upon request.
Gromelle 格羅梅爾 R4000系列單向閥主體材料：銅、鋼、不銹鋼
EATON Gromelle 格羅梅爾 R4000系列單向閥產品特性：
1、一體式鍍鋅鋼主體
2、一體式高強度單向閥，在不同操作條件下表現可靠
3、該單向閥配有優質丁腈橡膠密封圈（NBR），低壓和高壓下都少泄露
4、流動時壓降小
5、內螺紋NPTF，BSPP連接
6、開啟壓力：7psi(0.5bar)
RA 04210 00, 1/4inch
RA 04220 00,3/8inch
RA 04230 00, 1/2inch
RA 04240 00, 3/4inch
RA 04250 00,1inch
身體尺寸 零件編號（鋼，NBR 密封） 零件編號（鋼，FKM 密封） 零件編號（鋼，EPDM 密封） 零件編號（黃銅，NBR 密封） 零件編號（黃銅，FKM 密封） 零件編號（黃銅，EPDM 密封） 部件號（不銹鋼，FKM 密封） 零件編號（不銹鋼，EPDM 密封） 開啟壓力（巴） BSPP 內螺紋
|
Body Size |
Part Number (Steel, NBR seal) |
Part Number (Steel, FKM seal) |
Part Number (Steel, EPDM seal) |
Part Number (Brass, NBR seal) |
Part Number (Brass, FKM seal) |
Part Number (Brass, EPDM seal) |
Part Number (Stainless, FKM seal) |
Part Number (Stainless, EPDM seal) |
Cracking pressure (bar) |
BSPP female thread |
| 1/4 |
RA0400000 |
RA04000V0 |
RA04000E0 |
RL0400000 |
RL04000V0 |
RL04000E0 |
RZ04000V0 |
RZ04000E0 |
0.5 |
1/8 |
| 1/4 |
RA0401000 |
RA04010V0 |
RA04010E0 |
RL0401000 |
RL04010V0 |
RL04010E0 |
RZ04010V0 |
RZ04010E0 |
0.5 |
1/4 |
| 3/8 |
RA0402000 |
RA04020V0 |
RA04020E0 |
RL0402000 |
RL04020V0 |
RL04020E0 |
RZ04020V0 |
RZ04020E0 |
0.5 |
3/8 |
| 1/2 |
RA0403000 |
RA04030V0 |
RA04030E0 |
RL0403000 |
RL04030V0 |
RL04030E0 |
RZ04030V0 |
RZ04030E0 |
0.5 |
1/2 |
| 3/4 |
RA0404000 |
RA04040V0 |
RA04040E0 |
RL0404000 |
RL04040V0 |
RL04040E0 |
RZ04040V0 |
RZ04040E0 |
0.5 |
3/4 |
| 1 |
RA0405000 |
RA04050V0 |
RA04050E0 |
RL0405000 |
RL04050V0 |
RL04050E0 |
RZ04050V0 |
RZ04050E0 |
0.5 |
1 |
| 1.1/4 |
- |
RA04060V0 |
RA04060E0 |
- |
RL04060V0 |
RL04060E0 |
RZ04060V0 |
RZ04060E0 |
0.5 |
1.1/4 |
| 1.1/2 |
- |
RA04070V0 |
RA04070E0 |
- |
RL04070V0 |
RL04070E0 |
RZ04070V0 |
RZ04070E0 |
0.5 |
1.1/2 |
| 2 |
- |
RA04090V0 |
RA04090E0 |
- |
RL04090V0 |
RL04090E0 |
RZ04090V0 |
RZ04090E0 |
0.5 |
2 |
| 1/4 |
RA040000B |
RA04000VB |
RA04000EB |
RL040000B |
RL04000VB |
RL04000EB |
RZ04000VB |
RZ04000EB |
1 |
1/8 |
| 1/4 |
RA040100B |
RA04010VB |
RA04010EB |
RL040100B |
RL04010VB |
RL04010EB |
RZ04010VB |
RZ04010EB |
1 |
1/4 |
| 3/8 |
RA040200B |
RA04020VB |
RA04020EB |
RL040200B |
RL04020VB |
RL04020EB |
RZ04020VB |
RZ04020EB |
1 |
3/8 |
| 1/2 |
RA040300B |
RA04030VB |
RA04030EB |
RL040300B |
RL04030VB |
RL04030EB |
RZ04030VB |
RZ04030EB |
1 |
1/2 |
| 3/4 |
RA040400B |
RA04040VB |
RA04040EB |
RL040400B |
RL04040VB |
RL04040EB |
RZ04040VB |
RZ04040EB |
1 |
3/4 |
| 1 |
RA040500B |
RA04050VB |
RA04050EB |
RL040500B |
RL04050VB |
RL04050EB |
RZ04050VB |
RZ04050EB |
1 |
1 |
| 1.1/4 |
- |
RA04060VB |
RA04060EB |
- |
RL04060VB |
RL04060EB |
RZ04060VB |
RZ04060EB |
1 |
1.1/4 |
| 1.1/2 |
- |
RA04070VB |
RA04070EB |
- |
RL04070VB |
RL04070EB |
RZ04070VB |
RZ04070EB |
1 |
1.1/2 |
| 2 |
- |
RA04090VB |
RA04090EB |
- |
RL04090VB |
RL04090EB |
RZ04090VB |
RZ04090EB |
1 |
2 |
|
