Ashcroft SB Subsea Pressure Gauge深海壓力表

Ashcroft SB & SC 316不銹鋼壓力表專為海底環境應用設計，具有IP68防護等級和耐鹽水腐蝕性能，深度可達2,500米（SC）和6,000米（SB），是安全壓力測量的選擇。

The Ashcroft SB subsea pressure gauge provides exceptional durability for undersea environments. The fully-welded measurement system and materials of construction assures reliability and corrosion resistance, while the various sizes and mounting serve many installation points to depths of 6,000 meters.

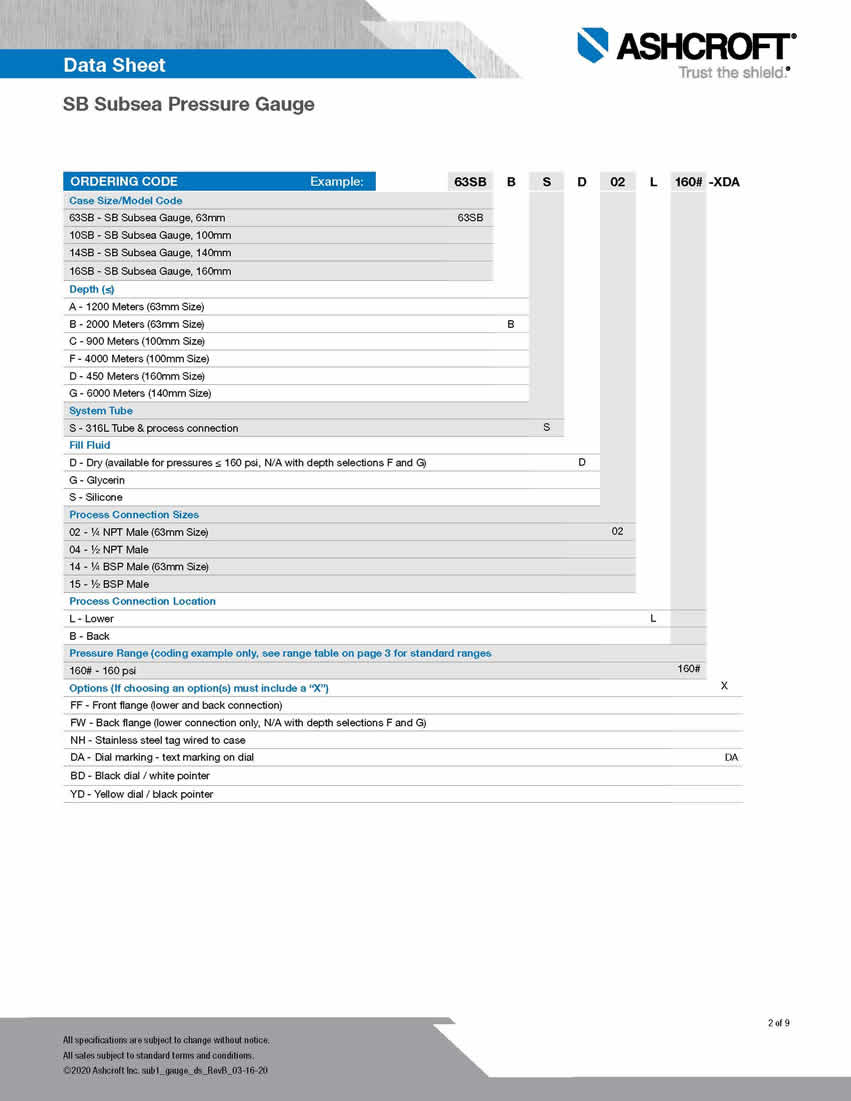

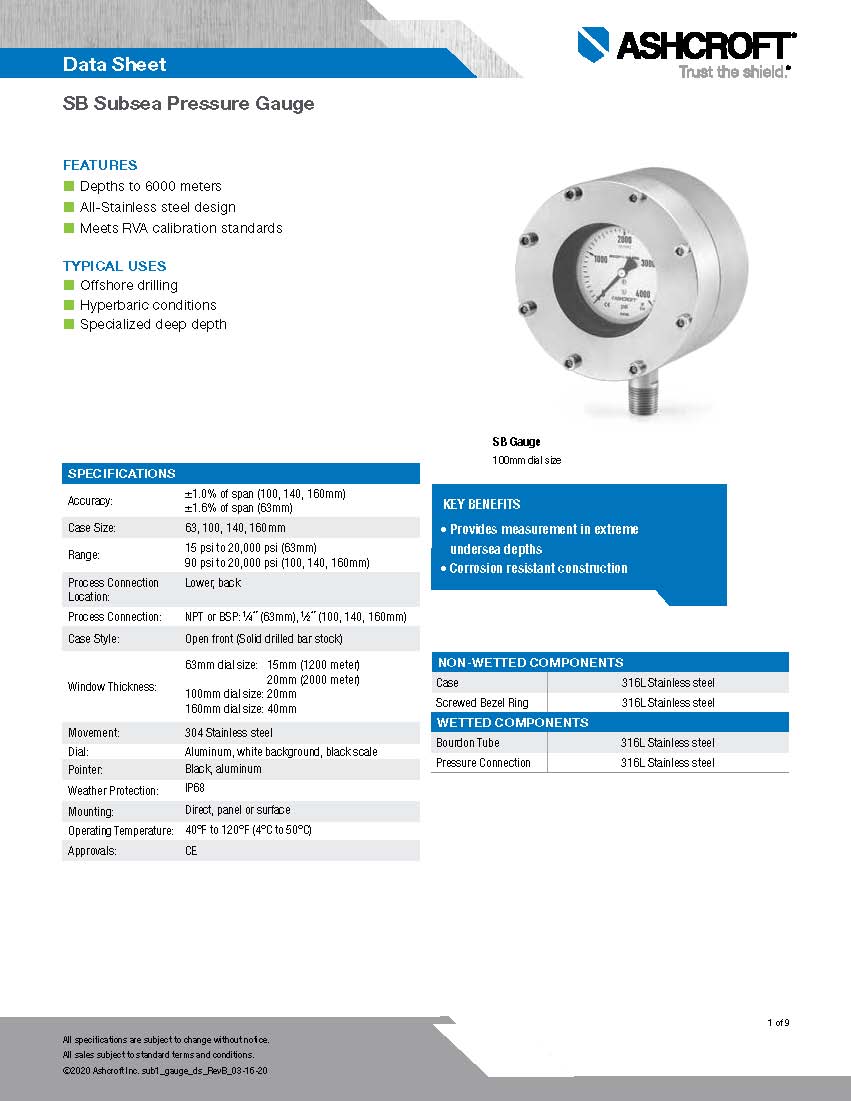

Datasheet SB Subsea Pressure Gauge - ashcroft

Key Features:
Depths to 6,000 meters
Rugged construction for extreme undersea environments
Solid drilled, bar stock cases
316L stainless steel wetted material and case
Corrosion resistant construction
Specifications:
Accuracy:
±1.0% of span - 100mm, 140mm and 160mm
±1.6% of span - 63mm
Pressure Ranges:
15 psi to 15,000 psi (63mm)
90 psi to 20,000 psi (100mm, 140mm and 160mm)
Case size: 63mm, 100mm, 140mm and 160mm
Process Connection: 1/4, 1/2 NPT or BSP
Mounting Options: stem, panel or wall

The SB subsea pressure gauge is ideal where safe and reliable pressure measurement is essential:

Process Markets:
Offshore
Specialized Deep Depth Equipment
Hyperbaric Conditions

CE
