Parker Autoclave Engineers Reactor反應釜
Autoclave Engineers公司作為高壓反應設備方面的生產廠商已經有50年歷史。Autoclave Engineers 被世人關注不僅僅因他在安全性和可靠性方面的輝煌歷史，更是因為AE公司同時是技術上的一個開創者。MagneDrive（磁性驅動）就是由AE公司設計并應用在一系列的新型壓力容器上的。我們在建立研究型實驗室級別的先進攪拌型高壓反應釜上有著廣泛并占優勢地位的經驗。

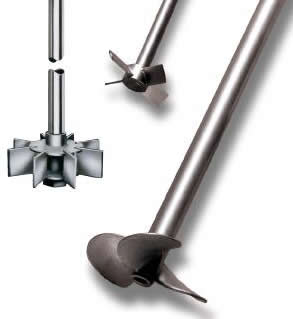

Autoclave Engineers公司一系列的模件配置支持客戶在相當廣泛的選項上自定義特殊要求。 壓力容器配置的首要選擇因素為壓力和溫度要求、容量、固定方式和封印兼容性。其次為攪拌裝置的詳細要求，包括扭矩要求、葉輪結構和馬達類型。適合您研究的內部元件、預裝閥門和儀器也是必須考慮的。
Autoclave Engineers Reactor反應釜產品范圍
- Stirred Reactors 攪拌反應器
|
|

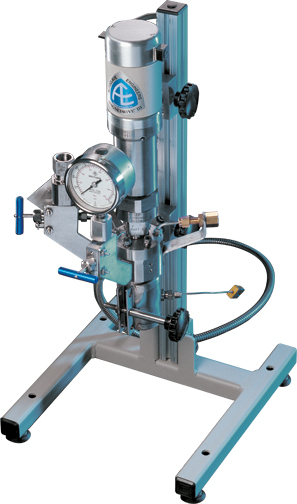

Mini-Reactors
微型反應釜
A Full-featured stirred reactor in an easy-open, compact size.
No tools required…open and close by hand.
25ml, 50ml, 100ml & 150ml sizes
2,900psi pressure at 600oF
3,000 rpm In-Line MagneDrive III agitation
Volume: 25, 50, 100 and 150 ml
Operating Pressure: 3,000 psi @ 600°F
207 Bar @ 315°C |
Bolted Closure Laboratory Batch Reactors
The highest pressure rating of the standard stirred laboratory reactors
A standard high pressure laboratory batch reactor
- Pressure rating of 5,500 psig (379 bar)
- Temperature rating 650°F (343°C)
- Magnetic mixer (3,300 rpm MagneDrive?)
- Standard sizes from 100 ml to 4,000 ml (other sizes offered)
- Many options
- Optional metal seals
- ASME Code stamp option |
|
|
High Temperature, Bolted Closure Laboratory Batch Reactors
The highest temperature and pressure rating of the standard stirred laboratory reactors
The High Pressure, Bolted Closure reactors permit research to be conducted at extremely high temperatures and pressures. Parker Autoclave Engineers has designed this line of reactors and specified the valves, fittings and tubing to be capable of 5,000 psi at up to 950°F (345bar @ 510°C) |
EZE-Seal Stirred Laboratory Reactor
Seal this (100 to 4,000 ml) high pressure laboratory reactor with low torque
A standard high temperature laboratory batch reactor
- 3,300 psig (227 bar) pressure rating
- 850°F (454°C) temperature rating
- Optional metal seals
- Catalytic conversion kits & optional equipment
- Magnetic mixer (3,300 rpm)
- Standard sizes (100 to 4,000 ml)
- ASME Code stamp option |
|
|

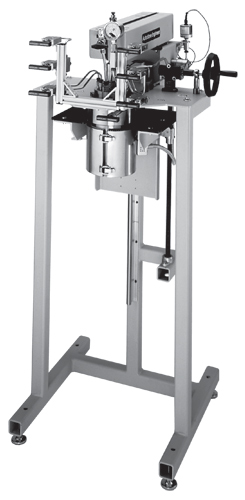

ZipperClave Stirred Laboratory Reactor
Open this (500 to 4,000 ml) high pressure, laboratory reactor by hand
A standard high pressure laboratory batch reactor
- Open & seal without tools
- Pressure rating of 2,200 psig (151 bar)
- Temperature rating 450°F (232°C)
- O-ring seals
- Magnetic mixer (3,300 rpm MagneDrive?)
- Standard sizes (500 to 4,000 ml)
- Many equipment options
- Dispersimax impeller offered. |

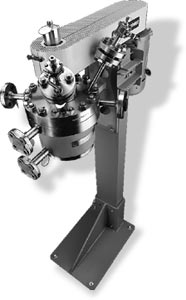

Stirred Precontacting Pot
Mix/slurry catalysts and pwder into pressurized, chemical reactions
Add hard-to-wet powders into 1 gallon (4 Liters) of high-pressure, viscous chemicals using a stirred & jacketed reactor. It is basic equipment for the slurry-phase/gas-phase Spheripol polypropylene process. The 1,000 psig (69 bar) pressure rating @ 212°F (100° C) allows direct injection of the mixture into a reaction under pressure. The MagneDrive? magnetically coupled mixer stirs viscous fluids |
|
|
|

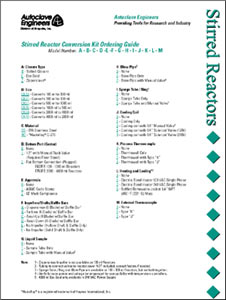

Conversion Kit
Change capacity of standard, ZipperClave, EZE-Seal, & Bolted closure batch reactors. Purchase the vessel, impeller, shaft, internal process tubing & furnace that you need in a single, complete conversion kit. Easily specify conversion parts for adding new capabilities to your high temperature, high pressure reactor.
|
壓力密封方式：AE公司提供三種基本的密封壓力容器系列：
ZipperClave Reactor
ZipperClave系列提供快的密封開啟方式，不需要螺栓，密封圈，快松夾等任何配件。ZipperClave使用橡膠O型墊圈進行密封。 |
EZE Seal Reactor
EZE-Seal型可以工作在高溫和中等壓力之下。“活套法蘭”允許快速簡單的換置釜身。本型的密封設計只要求很小的螺栓扭力。EZE-Seal可以采用金屬或是橡膠密封。 |
Bolted Closure Reactor
Bolted Closure 型可以在適合的溫度時工作在極高的壓力下。體型采用Gasche金屬墊片進行壓力密封。 |
- Autoclave Engineers Laboratory Reaction Systems實驗室反應系統
|
|
Multi-Reactor Systems
Multiple Reactors for Faster Catalyst Development.
Productivity is increased by performing parallel processing. The stirred reactors can be chosen from any of Parker Autoclave Engineers' reactors. The number of reactors and their size & configuration is determined solely by your process requirments. Each system is custom desgined to meeet all of your needs. |
BTRS-JR Laboratory Tube Reactor System
Oven-based bench top tube reactor system keeps process fluid vaporized
The BTRS-Jr / vaporizes / mixes four inputs, which react in a tube reactor (independent temperature control) with back-pressure regulation. Precisely sample either inputs or reactants as hot vapor (no condensation)
- Pressure rating to 2,900 psig (200 bar)
- Temperature to 1,202°F (650°C) |
|
|

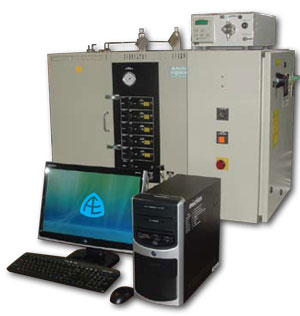

BTRS-JR-PC
Automatic Bench Top Reactor System at a reasonable price
The BTRS-Jr-PC is a complete reaction system designed for vapor phase catalyst evaluation and continuous flow analysis. The standard system includes one fixed bed tubular reactor with system control accomplished by a PLC and a supervisory computer. This system allows for accurate and automatic control of feed valves, status valve, sample valve, reactor temperature and pressure. Custom designs are available for other sized reactors, temperatures up to 1000oC, etc. |

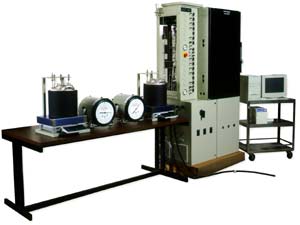

BTRS-900 Automatic Tube Reactor System
Automatic Bench Top Reaction System for complex laboratory simulations
Tube reactor system with, automatic customized software & controls (option for multiple reactor systems). Includes real-time fail-safe process logic (minimizing operator time / errors) & data acquisition / manipulation
- Pressure rating to 2,900 psig (200 bar)
- Temperature to1,202°F (650°C) |
- Autoclave Engineers Catalyst Reactors 催化劑反應器
|
|

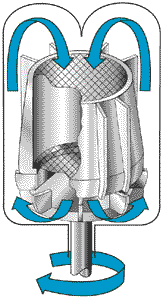

Berty Stationary Basket Catalyst Reactor
Recycling gas/vapor phase catalyst research tool
Circulate gas past a stationary catalyst bed using 2,500 rpm vane blowers, either 3" (75 mm) or 5" (125 mm) OD, contained within the high pressure reactor
- Three different pressure ratings between 2,450 to 5,800 psi (169 to 400 bar)
- Two temperature ratings 650°F & 1,200°F (343°C & 649°C) |
Micro-Berty Catalyst Testing Reactor
Miniature version of the Berty Stationary Basket Catalyst Reactor
Circulate the gas & vapor past the stationary catalyst bed using 5,000 rpm, 1" (25 mm) OD vane blower, contained within the high pressure reactor
- Pressure rating of 5,000 psig (349 bar)
- Temperature rating of either 650°F (343°C) or 1,000°F (538 °C)
- HASTELLOY? C-276 wetted materials |
|
|

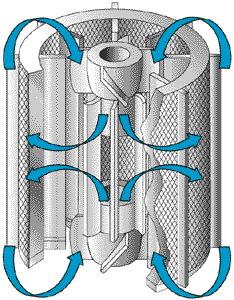

Robinson-Mahoney Catalyst Testing Reactor
The most widely used supported catalyst testing reactor for multiple phases
Popular reactor design circulates liquid reactants past a stationary catalyst bed. Impellers (1,000 rpm) draw fluid into the center of an annular catalyst basket
- Pressure ratings 5,400 psig (372 bar) @ 300 cm3 & 5,800 psig (400 bar) @ 1,000 cm3
- Temperature rating 650°F (343°C) |
Micro Robinson-Mahoney Catalyst Reactor
Test supported catalysts with this "Micro" reactor for multiple phases
Miniature version of the Robinson-Mahoney reactor design circulates liquid reactants past a stationary catalyst bed. Impellers (5,000 rpm) draw fluid into the center of an annular catalyst basket
- Pressure rating 5,000 psig (345 bar)
- Temperature rating 650°F (343°C)
- HASTELLOY? C-276 material |
|
|

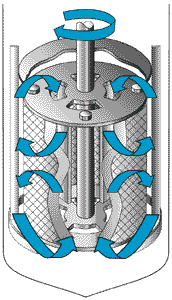

Mahoney-Robinson Spinning Basket Reactor
Spinning annular basket for supported catalyst testing in fluid reactants
One of the Parker Autoclave Engineers catalyst testing reactors for hydro-liquefaction, liquefaction, petroleum cracking, surface chemistry & heterogeneous catalysis research. This design spins a catalyst basket in liquid reactants
- Pressure rating 5,500 psig (379 bar)
- Temperature rating 650°F (343°C) |
Carberry Spinning Basket Catalyst Reactor
A versatile supported catalyst testing reactor with internal circulation
This multipurpose design spins either a 3" (75 mm) or 5" (125 mm) OD catalyst basket from 0 to 2,500 rpm in order to circulate gases & liquids past solid catalysts
- Three different pressure ratings between 2,450 to 5,800 psig (169 to 400 bar)
- Two temperature ratings 650°F & 1,200°F (343°C & 649°C) |
|
|
Harshaw Falling Basket Catalyst Reactor
Staged gas/solid & liquid/solid catalyst testing reactor
This sequential, spinning basket design allows the scientists to regenerate / condition / treat / activate / surface modify the catalyst in a gas phase; then directly immerse the catalyst in a liquid phase without handling
- Pressure rating 5,500 psig (379 bar)
- Temperature rating 650°F (343°C) |
Caldwell Catalyst Testing Reactor
Low density gas/vapor recycling flow supported catalyst research tool
The design creates high circulation pressure & high mass transfer with low density gas. A 8" (200 mm) vane blower @ 2,500 rpm moves the gas past a stationary catalyst bed. Optional plating deactivates the reactor's surfaces
- Pressure rating 800 psig (55 bar)
- Temperature rating 950°F (510°C) |
|
|

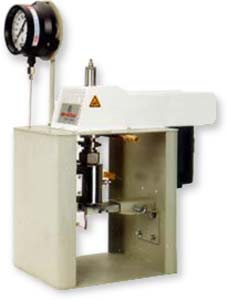

MicroClave Catalyst Testing Reactor
A miniature reactor for precision high pressure catalyst research
Standard, miniature high pressure homogeneous & dispersed catalyst testing reactor
- Pressure rating of 5,000 psig (345 bar)
- Temperature ratings of either 650°F (343°C) or 1,000°F (538°C)
- HASTELLOY C-276 material
- Metal seals
|
MicroClave Catalyst Testing Reactor
A miniature reactor for precision high pressure catalyst research
Standard, miniature high pressure homogeneous & dispersed catalyst testing reactor
- Pressure rating of 5,000 psig (345 bar)
- Temperature ratings of either 650°F (343°C) or 1,000°F (538°C)
- HASTELLOY C-276 material
- Metal seals
|
|
