Parker Autoclave Engineers海底應用球閥的設計滿足了石油行業對耐受外部壓力的閥件不斷增長的需求。在海工行業應用設計中，為水下機器人，潛水員裝備或海底遠程執行設備提供了簡易安裝。 Parker Autoclave Engineers海底應用球閥外部承壓達20，000psi(1379bar），閥內承壓達水深12，500”(3810米)。
Parker Autoclave Engineers 海底球閥的設計滿足了石油行業不斷增長的需求，以及其他市場對外壓組件的需求。利用與標準球閥相同的設計技術，水下設計包括必要的設計變更，為水下行業提供可靠的外壓閥。由于配件、管道和相關設備的可用性，我們的球閥可以滿足您在地面上或地下高壓應用中的所有需求。Parker Autoclave Engineers subsea ball valves have been designed to fulfill the ever growing demand in the petroleum industry as well as the need for externally pressurized components in other markets. Utilizing the same design technology as the standard ball valve, the subsea design incorporates the necessary design alterations to provide a reliable externally pressurized valve for the subsea industry. With the availability of fittings, tubing, and related equipment our ball valves can provide all your needs on high-pressure applications above or below the surface.
- 海底球閥深水應用：2通和3通設計，壓力可達20000psi, 水深達3810米，12500ft; ROV Paddles and buckets可選。海底球閥符合NACE MR-01-75標準，ROV水下機器人可操作。海底球閥典型應用包括水下液壓管路、閥組、水下控制面板、水下采油樹和潛艇。

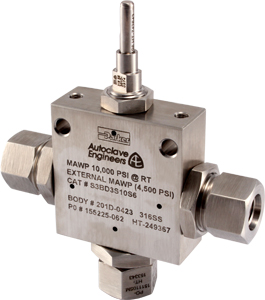

Autoclave海底球閥 (1.379bar) 壓力等級20,000psi
尺寸: 3/16~，1/4~，3/8~，1/2~和1英寸
用于海底操作的高壓球閥，水深12,500英尺(3810米)
二通6.35m節流口徑型號: S2B4S15L2，S2B4S15L4，S2B4S15L6，S2B4S10L8，S2B4S20K4，S2B4S20M6，S2B4S20，S2B4S20H4，S2B4S20H6，S2B4S20H9，S2B4S15P2，S2B4S15P4，S2B4S15P6.S2B4S15P8
二通9.52m節流口徑型號: S2B6S10L8，S2B6S206，S2B6S20，S2B6S20M12，S2B6S15P4,S2B6S15P6， S2B6S15P8
二通12.7mm節流口徑型號: S2B8S15M12，S2B8S15M16，S2B8S10P12，S2B8S10P16
二通4.77m節流口徑型號: S3B3S15M4，S3BD3S15M4，S3B3S15M6，S3BD3S15M6，S3B3S15M9,S3BD3S15M3，S3B3S15H4S3BD3S15H4， S3B3S15H6，S3BD3S15H6，S3B3S15P4，S3BD3S15P4，S3B3S15P6，S3BD3S15P6二通8.33n節流口徑型號: S3B6S10L8，S3BD6S10L8，S3B6S106，S3BD6S10M6，S3B6S10M9，S3BD6S10M9，S3B6S10M12,S3BD6S10M12，S3B6S10P4，S3BD6S10P4，S3B6S10P6，S3BD6S10P6，S3B6S10P8，S3BD6S10P8
二通12.7m節流口徑型號: S3B8S10M12，S3BD8S10M12，S3E8S10M16，S3BD8S10M16，S3B8S10P12，S3BD8S10P12，S3B8S10P16.S3BD8S10P16
Parker Autoclave Engineers ball valves can be utilized to switch or isolate flow. The standard material of construction of the valve is 316 cold worked stainless steel with PEEK seats, graphite filled PTFE stem seal, and o-ring material as required by the process fluid.
The subsea ball valve design incorporates additional o-ring seals, which prevent the ingress of seawater into the valve which would adversely affect the operation of the valve as well as contaminate the process fluid. A significant feature of the subsea design is a thrust washer positioned under the stem preventing outside sea water from moving the stem from it’s aligned position.

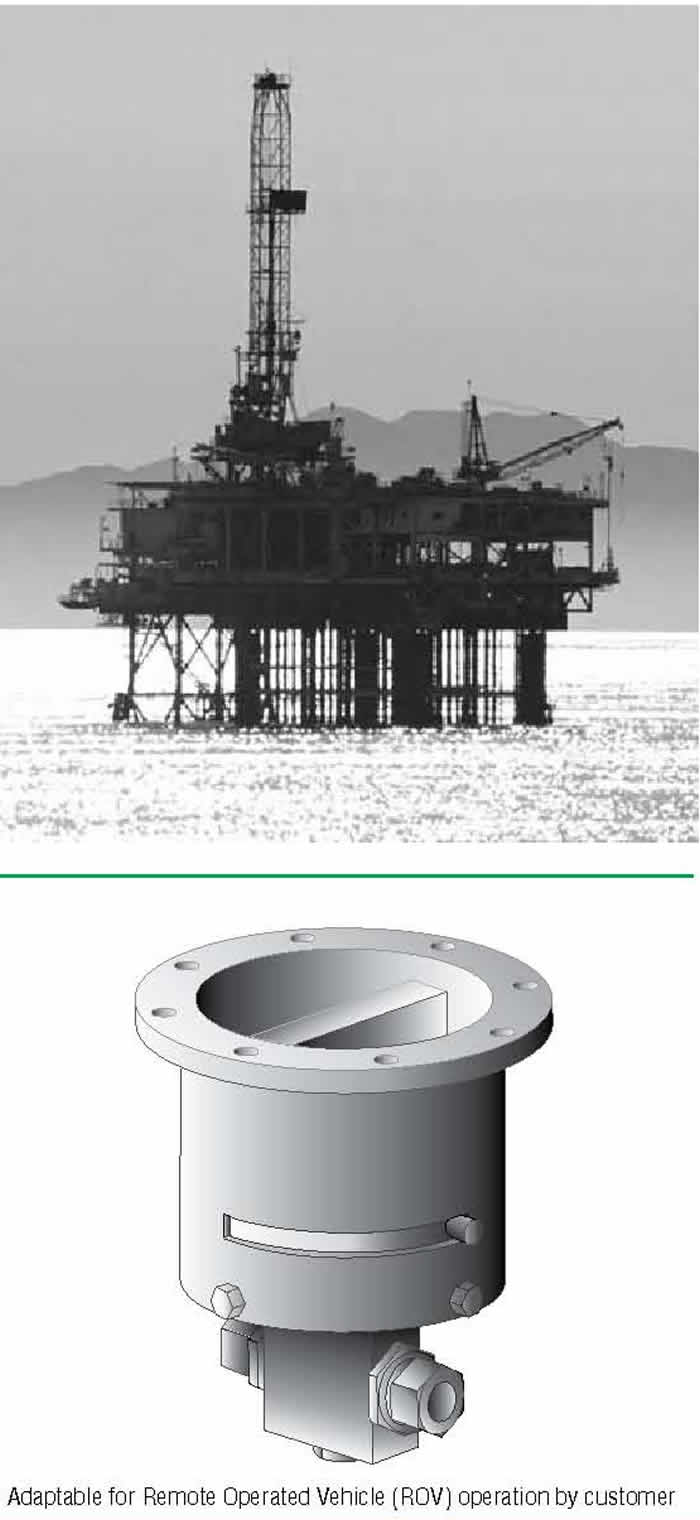

Subsea ball valves are designed to facilitate operation by a Remote Operated vehicle (ROV). ROV operator assemblies are used for valve mounting and to provide positive stopping for precise 90° operation.
Various tube and pipe connections are available throughout a variety of valve configurations with standard port sizes from 3/16” to 1”. Contact Parker Autoclave Engineers technical sales support or your local distributor for more information on optional materials of construction, seal materials and ROV operator designs to fit your application requirements.
PRESSURE TEMPERATURE RATINGS
MAWP: Maximum Allowable Working Pressure
TEMPERATURE .C
(-18) (38)
(93) (150) (204) (260)
Cv listed is for maximum orifice size of .250 inches only. Consult factory for Cv of valves with reduced orifice sizes.
20,000
(1379)
(1034)
15,000
10,000
(690)
(345)
5,000
0
TEMPERATURE .F
Pressure ratings are determined by the end connections chosen, see chart.
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 4 S 20 M9
Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi) Subsea-2-way Diameter S - 316SS M9 - SF562CX20 V - Viton: 400°F (204°C) max EPDM -Ethylene Propylene: 250°F (121°C) max
4-1/4” (For material options (See Chart on (6.35mm) contact factory) next page)
End Connection Options
Seat Gland
Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B4S15L2 L2 W125 15,000 psi (1034 bar) 1 (25.40)
S2B4S15L4 L4 SW250 15,000 psi (1034 bar) 1 (25.40)
S2B4S15L6 L6 SW375 15,000 psi (1034 bar) 1 (25.40)
S2B4S10L8 L8 SW500 10,000 psi (690 bar) 1 (25.40)
S2B4S20M4 M4 SF250CX20 20,000 psi (1379 bar) 1 (25.40)
S2B4S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1 (25.40)
S2B4S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1 (25.40)
S2B4S20H4 H4 F250C 20,000 psi (1379 bar) 1 (25.40)
S2B4S20H6 H6 F375C 20,000 psi (1379 bar) 1 (25.40)
S2B4S20H9 H9 F562C 20,000 psi (1379 bar) 1.38 (35.05)
S2B4S15P2 P2 1/8” NPT 15,000 psi (1034 bar) 1 (25.40)
S2B4S15P4 P4 1/4” NPT 15,000 psi (1034 bar) 1 (25.40)
S2B4S15P6 P6 3/8” NPT 15,000 psi (1034 bar) 1 (25.40)
S2B4S15P8 P8 1/2” NPT 15,000 psi (1034 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 12,500 FT (3811 meters)
3.
Maximum External Pressure 5,500 psi (379 bar)
SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.
PRESSURE BAR
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 6 S 20 M9
EPDM - Ethylene Propylene: 250°F (121°C) max
PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C (-18) (38)(93) (150) (204) (260) 20,000
(1379)
(1034)
15,000
10,000
(690)
(345)
5,000
0
100 200 300 400 500 TEMPERATURE .F
Pressure.ratings.are.determined.by.the.end.connections.chosen,.see.chart.
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
Valve Ball Material Pressure
Series Orifice (X 1000 psi) End Connection Options
Subsea-2-way Diameter S - 316SS
M9 - SF562CX20 V - Viton: 400°F (204°C) max
6-3/8” (For material options
(9.52 mm) contact factory) (See Chart on
next page)
End Connection Options
Seat Gland
Catalog Number End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B6S10L8 L8 SW500 10,000 psi (690 bar) 1.38 (35.05)
S2B6S20M6 M6 SF375CX20 20,000 psi (1379 bar) 1.38 (35.05)
S2B6S20M9 M9 SF562CX20 20,000 psi (1379 bar) 1.38 (35.05)
S2B6S20M12 M12 SF750CX20 20,000 psi (1379 bar) 1.38 (35.05)
S2B6S15P4 P4 1/4” NPT 15,000 psi (1034 bar) 1.38 (35.05)
S2B6S15P6 P6 3/8” NPT 15,000 psi (1034 bar) 1.38 (35.05)
S2B6S15P8 P8 1/2” NPT 15,000 psi (1034 bar) 1.38 (35.05)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 11,500 FT (3505 meters)
3.
Maximum External Pressure 5,000 psi (345 bar)
SEE END CONNECTION OPTIONS (both ends)
SEE SEAT
GLAND HEX
5.53
(140.3)
Dimensions for reference only and subject to change.
MAWP @ Minimum Orifice
Connection Room Temperature Inches (mm)
SF750CX20 15,000 psi (1034 bar) .500 (12.70) SF1000CX20 15,000 psi (1034 bar) .500 (12.70) 3/4” NPT 10,000 psi (690 bar) .500 (12.70) 1” NPT 10,000 psi (690 bar) .500 (12.70)
Valve Cv=10.20
MAWP: Maximum Allowable Working Pressure
TEMPERATURE .C (-18) (38) (93) (150) (204) (260) 15,000
(1034)
(690)
10,000
5,000
(345)
0
Pressure ratings are determined by the end connections chosen, see chart.
Maximum temperature rating is determined by the o-ring material
(see descriptions below).
Maximum pressure rating is determined by the end connection
(see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 8 S 15 M12
Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi)
Subsea-2-way Diameter S - 316SS
8-1/2” (For material options M12 - SF750CX20 V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
(See Chart on
next page)(12.7 mm) contact factory)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B8S15M12 M12 SF750CX20 15,000 psi (1034 bar) 1.75 (44.5) S2B8S15M16 M16 SF1000CX20 15,000 psi (1034 bar) 1.75 (44.5) S2B8S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.75 (44.5) S2B8S10P16 P16 1” NPT 10,000 psi (690 bar) 1.75 (44.5)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
.500” DEEP
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 11,500 FT (3505 meters)
3.
Maximum External Pressure 5,000 psi (345 bar)
SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.
Ball Valves -2-Way Subsea Series (3/4” Orifice)
Pressures to 15,000 psi (1034 bar) .750” (19mm) Orifice
PRESSURE BAR
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 12 S 15 M12
MAWP @ Minimum Orifice
Connection Room Temperature Inches (mm)
SF750CX10 15,000 psi (1034 bar) .516 (13.10) SF1000CX10 15,000 psi (1034 bar) .688 (17.47) 1/2” NPT 15,000 psi (1034 bar) .688 (17.47) 3/4” NPT 10,000 psi (690 bar) .75 (19.05) 1” NPT 10,000 psi (690 bar) .75 (19.05)
Valve Cv=21
MAWP: Maximum Allowable Working Pressure
Cv listed is for maximum orifice size of .750 inch only.
Consult factory for Cv of valves with reduced orifice sizes.
(1034)
(690)
(345)
(see descriptions below).
Maximum pressure rating is determined by the end connection
(see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi) Subsea-2-way Diameter S - 316SS M12 - SF750CX10 V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
12-3/4” (For material options (See Chart on
(19.05 mm) contact factory) next page)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B12S15M12 M12 SF750CX20 15,000 psi (1034 bar) 1.88 (47.8) S2B12S15M16 M16 SF1000CX20 15,000 psi (1034 bar) 1.88 (47.8) S2B12S15P8 P8 1/2” NPT 15,000 psi (1034 bar) 1.88 (47.8) S2B12S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.88 (47.8) S2B12S10P16 P16 1” NPT 10,000 psi (690 bar) 1.88 (47.8)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
.625” DEEP
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 11,500 FT (3505 meters)
3.
Maximum External Pressure 5,000 psi (345 bar)
SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.
Ball Valves -2-Way Subsea Series (1” Orifice)
Pressures to 10,000 psi (690 bar) 1.00” (25.4mm) Orifice
MAWP @ Minimum Orifice
Connection Room Temperature Inches (mm) Valve CV
SF1500CX 10,000 psi (690 bar) .938 (23.83) 30 3/4” NPT 10,000 psi (690 bar) 1.00 (25.40) 34 1” NPT 10,000 psi (690 bar) 1.00 (25.40) 34
MAWP: Maximum Allowable Working Pressure
(1034)
(690)
(345)
(see descriptions below).
Maximum pressure rating is determined by the end connection
(see table above).
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
For complete information on available end connections, see next page. 2-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S2B 16 S 10 P16
PRESSURE BAR
Valve Ball Material Pressure End Connection OptionsSeries Orifice (X 1000 psi) Subsea-2-way Diameter S - 316SS P16 - 1” NPT V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
(See Chart on
16-1” (For material options
(25.4 mm) contact factory) next page)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S2B16S10M24 M24 SF1500CX 10,000 psi (690 bar) 1.88 (47.75)S2B16S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.88 (47.75)S2B16S10P16 P16 1” NPT 10,000 psi (690 bar) 1.88 (47.75)
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
.625” DEEP
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 11,500 FT (3505 meters)
3.
Maximum External Pressure 5,000 psi (345 bar)
SEE END CONNECTION OPTIONS (both ends)
SEE SEAT GLAND HEX
Dimensions for reference only and subject to change.
Dimensions for P12 and P16 connections only. Contact facotry for M16 dimensions.
PRESSURE TEMPERATURE RATINGS TEMPERATURE .C (-18) (38) (93) (150) (204) (260) 20,000
(1379)
SF & F CO NNECTIONS
NPT C ONNECTION
NPT conne ction rated 400.F (204.C) maximum.
(1034)
15,000
(690)
10,000
(345)
5,000
0
100 200 300 400 500 TEMPERATURE .F *pressure ratings are determined by the end connections chosen, see chart. NOTE: Maximum side connection inlet pressure 15,000 psi (1034 bar).
Maximum temperature rating is determined by the o-ring material
Ordering Procedure
Standard valve has Buna-N o-rings [250°F (121°C)] max. Typical catalog number: S3BD 3 S 20 M9
Valve Ball Material Pressure End Connection Options
Series Orifice (X 1000 psi) Diameter S -316SS
V - Viton: 400°F (204°C) max
S3B Subsea-3-way
M9 - SF562CX20
S3BD Subsea-3-way
diverter
EPDM - Ethylene Propylene: 250°F (121°C) max (See Chart on
3-3/16” (For material options
next page)
contact factory)
(4.77 mm)
End Connection Options Catalog End Connection Number Number Connection MAWP @ Room Temperature Hex Inches(mm) Seat Gland
S3B3S15M4 S3BD3S20M4 M4 SF250CX20 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15M6 S3BD3S20M6 M6 SF375CX20 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15M9 S3BD3S20M9 M9 SF562CX20 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15H4 S3BD3S20H4 H4 F250C 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15H6 S3BD3S20H6 H6 F375C 15,000 psi (1034 bar) 20,000 psi (1379 bar) 1 (25.40)
S3B3S15P4 S3BD3S15P4 P4 1/4” NPT 15,000 psi (1034 bar) 1 (25.40)
S3B3S15P6 S3BD3S15P6 P6 3/8” NPT 15,000 psi (1034 bar) 1 (25.40)
See ball valve option/detail section for end connection details, material, and high temperature options.
OPEN OPEN OPEN CLOSED OPEN
*3-Way Diverter Valve 3-Way Ball Valve 90° Turn 180° Turn
*The Diverter Valve design permits inlet flow through the bottom port. Outlet flow may be diverted to either valve side port.
(6.35)
0.216 ± .001
(5.49 ± .025)
4.34
(110.23)
(119.89)
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 10,300 FT (3140 meters)
3.
Maximum External Pressure 4,500 psi (310 bar)
SEE END CONNECTION OPTONS (3 PLACES)
Dimensions for reference only and subject to change.
PRESSURE BAR
For complete information on available end connections, see next page. 3-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S3B 6 S 10 M9
PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C
(-18) (38) (93) (150) (204) (260) 15,000
(1034)
(690)10,000
TEMPERATURE .F
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
Note: Side inlet pressure not recommended. Bottom inlet pressure only.
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
Valve Ball Material Pressure End Connection Options
Series Orifice (X 1000 psi)
S3B Subsea-3-way Diameter S -316SS S3BD Subsea-3-way
M9 -SF562CX20 V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
(See Chart on6-3/8” (For material options
diverter
next page)(9.52 mm) contact factory)
End Connection Options
Seat Gland
CatalogNumber End Connection Number Connection MAWP @ Room Temperature Hex Inches(mm)
S3B6S10L8 L8 SW500 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10L8
S3B6S10M6 M6 SF375CX20 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10M6
S3B6S10M9 M9 SF562CX20 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10M9
S3B6S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10M12
S3B6S10P4 P4 1/4” NPT 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10P4
S3B6S10P6 P6 3/8” NPT 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10P6
S3B6S10P8 P8 1/2” NPT 10,000 psi (690 bar) 1.38 (35.05)
S3BD6S10P8
MAWP: Maximum Allowable Working Pressure
See ball valve option/details section for end connection details, material, and high temperature options.
OPEN OPEN OPEN CLOSED OPEN
*3-Way Diverter Valve 3-Way Ball Valve 90° Turn 180° Turn *The Diverter Valve design permits inlet flow through the bottom port. Outlet flow may be diverted to either valve side port.
NOTE:
1.
MAWP (See Table)
2.
Maximum Sea Depth 11,500 FT (3505 meters)
3.
Maximum External Pressure 5,000 psi (345 bar)
Dimensions for reference only and subject to change.
PRESSURE BAR
For complete information on available end connections, see next page. 3-way ball valves are furnished complete with tube or pipe connections. Standard valve has Buna-N o-rings [250°F (121°C)] max.
Typical catalog number: S3B 8 S 10 M12
PRESSURE TEMPERATURE RATINGS
TEMPERATURE .C
(-18) (38) (93) (150) (204) (260) 15,000
(1034)
(690)10,000
Maximum temperature rating is determined by the o-ring material (see descriptions below).
Maximum pressure rating is determined by the end connection (see table above).
Note: Side inlet pressure not recommended. Bottom inlet pressure only.
NOTE: Ball valves are not recommended for critical gas applications such as Hydrogen, Helium or other small molecular gases.
Ordering Procedure
Valve Ball Material Pressure OptionsEnd Connection
Series
Orifice
S -316SS M12 -SF750CX20
V - Viton: 400°F (204°C) max EPDM - Ethylene Propylene: 250°F (121°C) max
S3B Subsea-3-way Diameter
S3BD Subsea-3-way diverter 8-1/2” (For material options
(12.7 mm) contact factory) (See Chart on
next page)
End Connection Options Catalog End Connection MAWP @ Hex Number Number Connection Room Temperature Inches(mm) Seat Gland
S3B8S10M12 M12 SF750CX20 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10M12 S3B8S10M16 M16 SF1000CX20 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10M16 S3B8S10P12 P12 3/4” NPT 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10P12 S3B8S10P16 P16 1” NPT 10,000 psi (690 bar) 1.75 (44.5) S3BD8S10P16 See ball valve options for end connection details, material, and high temperature options. OPEN OPEN OPEN CLOSED OPEN MAWP: Maximum Allowable Working Pressure
*3-Way Diverter Valve 3-Way Ball Valve 90° Turn 180° Turn
*The Diverter Valve design permits inlet flow through the bottom port. Outlet flow may be diverted to either valve side port.
fcg.cnmec@parkerdistribution.com.cn
