Kopex-Ex UL listed range of XP-Flex explosion-proof flexible couplings
Kopex-Ex防爆撓性連接頭 -
XP Flex系列
XP-Flex explosion-proof flexible couplings
在危險場所建立柔性連接！

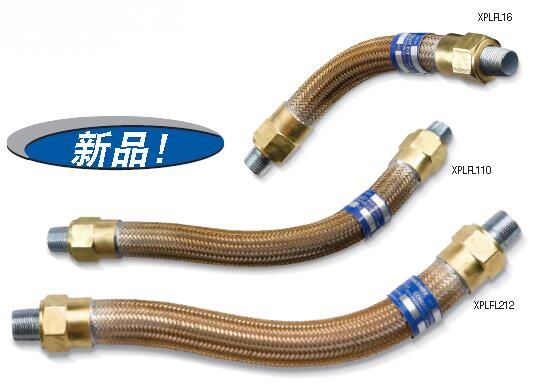

XP Flex防爆柔性管接頭
T&B XP Flex 防爆柔性連接頭采用柔性設計，能夠輕松地在密閉空間的導線
管系統中實現變向連接——或將移動或振動的設備連接到固定設備。該接
頭不僅防爆而且耐腐蝕，即使在危險潮和濕環境也可放心使用。
防爆撓性連接頭特點
- 通過UL危險潮濕環境使用認證
- 耐腐蝕，適用于沖洗區域
- 撓性青銅結構，帶耐電弧內套筒和黃銅接頭
- 終端處分別帶有兩個螺紋母接頭和兩個公接頭
- 使用時不需要跨接線
Kopex-Ex防爆撓性連接頭XP Flex系列接頭
認證
標準
UL認證：
0.5” and 0.75” 承口尺寸: Class I Div 1 及 2 ABCD;
Class II Div 1 EFG, Class III
1” 承口尺寸: Class I Div 1 及 2 CD;
Class II Div 1 EFG, Class III
UL 886 認證
XP Flex系列
防爆撓性連接頭 防火格蘭頭
XP Flex系列
防爆撓性連接頭-公制螺紋 / 材質：帶黃銅接頭的青銅結構
型號 |
NPT螺紋
尺寸 (inch) |
撓性
長度 (mm) |
長度 |
A |
B |
XPLFL16
|
1/2 |
150 |
39.1 |
36.6 |
XPLFL18 |
1/2 |
200 |
39.1 |
36.6 |
XPLFL110 |
1/2 |
250 |
39.1 |
36.6 |
XPLFL112
|
1/2 |
300 |
39.1 |
36.6 |
XPLFL115 |
1/2 |
380 |
39.1 |
36.6 |
XPLFL118 |
1/2 |
460 |
39.1 |
36.6 |
XPLFL124
|
1/2 |
610 |
39.1 |
36.6 |
| XPLFL212 |
3/4 |
300 |
40.6 |
47.5 |
| XPLFL215 |
3/4 |
380 |
40.6 |
47.5 |
XPLFL218
|
3/4 |
460 |
40.6 |
47.5 |
| XPLFL224 |
3/4 |
610 |
40.6 |
47.5 |
| XPLFL236 |
3/4 |
915 |
40.6 |
47.5 |
| XPLFL318 |
1 |
460 |
50.08 |
58.7 |
防爆、粉塵阻燃，適合危險場合應用
T&B XP Flex連接頭采用撓性設計，可在空間受限時在導線管系統內實現緊密完全，或用于連接靜止設備和移動或振動的設備。由于具有防爆和耐腐蝕的特性，它們非常適合在危險和潮濕場合中使用。
XP Flex range
Features
A range of explosion proof flexible coupling for hazardous areas (UL).
UL Listed for use in hazardous and wet location
Corrosion-resistant - ideal for wash down areas
Flexible bronze construction with arc resistant inner sleeve and brass fittings
Terminated with two threaded female end fittings and male close nipples
No bonding jumper required
XP Flex Part numbers
Part No |
Hub Size |
Length |
Bend Radius |
GID |
XPLFL318 |
1 NPT |
460mm |
300mm |
7TAD013340R0012 |
XPLFL236 |
3/4 NPT |
915mm |
250mm |
7TAD013340R0011 |
XPLFL224 |
3/4 NPT |
610mm |
250mm |
7TAD013340R0010 |
XPLFL218 |
3/4 NPT |
460mm |
250mm |
7TAD013340R0009 |
XPLFL215 |
3/4 NPT |
380mm |
250mm |
7TAD013340R0008 |
XPLFL212 |
3/4 NPT |
300mm |
250mm |
7TAD013340R0007 |
XPLFL124 |
1/2 NPT |
610mm |
200mm |
7TAD013340R0004 |
XPLFL118 |
1/2 NPT |
460mm |
200mm |
7TAD013340R0003 |
XPLFL115 |
1/2 NPT |
380mm |
200mm |
7TAD013340R0002 |
XPLFL115 |
1/2 NPT |
380mm |
200mm |
7TAD013340R0002 |
XPLFL112 |
1/2 NPT |
300mm |
200mm |
7TAD013340R0001 |
XPLFL110 |
1/2 NPT |
250mm |
200mm |
7TAD013340R0000 |
XPLFL18 |
1/2 NPT |
200mm |
200mm |
7TAD013340R0006 |
XPLFL16 |
1/2 NPT |
150mm |
200mm |
7TAD013340R0005 |

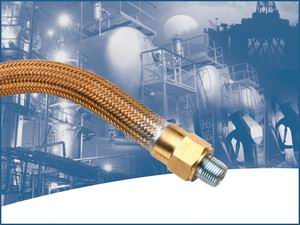

New Xp–Flex Flexible Couplings Are UL Listed
13 SEPTEMBER 2012
For any organisations selling electrical assemblies into the US market, the launch of the Kopex-Ex UL listed range of XP-Flex explosion-proof flexible couplings will be of particular interest. As UL listed products they are approved for use in hazardous and wet locations including Class 1, Div 1 & 2 classified areas. This classification covers areas where ignitable concentrations of flammable gasses, vapours or liquids are present within the atmosphere under normal operating conditions
XP-Flex explosion-proof flexible couplings have a flexible bronze construction with an arc resistant inner sleeve and brass fittings. They are terminated with two threaded female end fittings and male close nipples. With their flexible design, XP-Flex couplings make it easy to achieve tight bends in electrical conduit systems in confined spaces - or to connect stationary equipment to equipment that moves or vibrates. Their explosion-proof and corrosion-resistant construction means they can be used with confidence in hazardous and wet areas.
The XP-Flex range is available in 150-915mm flexible lengths, with , and 1 inch NPT threads available. These complement the Kopex-Ex range of enlargers, reducers, converters, universal stopping glands and swivel glands that are also available for Class, 1 Div 1 and 2 applications. The glands employ a putty to maintain any explosion within an enclosure.
