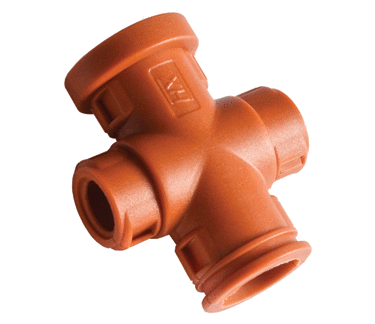

      Harnessflex Type XPH - High Temperature Two-piece X Configuration Fitting




      Harnessflex TempGuard hinged fittings


      Two-piece X configuration fitting. These fittings are designed to snap together over all types of slit and unslit Harnessflex conduit, maintaining maximum conduit bore. Full TempGuard system protection is achieved using these fittings with HTC conduit.




      Harnessflex Download Type XPH - High Temperature X-Piece datasheet














            Temperature Range




            Minimum
            -40oC




            Permanent Max
            +160oC




            Long term max (30,000 hrs)
            +185oC




            Short term max (3,000 hrs)
            +200oC










      • One-piece external design for unrestricted bore and quick assembly with no tools.


        •

      • High pull-off strength - conduit corrugations sit tightly into joiner junctions.


        •

      • Conduit size labels - each junction indicates nominal conduit size to aid installation


        •

      • High Temperature Polyamide (Nylon) - Low Smoke & Halogen Free


        •

      • IP40 rated


        •

      • High UV resistance
        •











      Conformity







      • CE Mark to the low voltage directive


        •

      • RoHS Compliant to 2011/65/EU


        •

      • Conforms with end of life vehicle directive (ELV) EU200/53/EC
        •

      • UL94 V2 / UL94 RTI 150 (Elec)
        •











      Harnessflex Download Type XPH - High Temperature X-Piece datasheet







      Conduit Size (NC)
            Conduit Size (NW)
            Conduit Engagement




            Part no
            A
            B
            C
            D
            A
            B
            C
            D
            E
            F
            G
            H




            XPH1208
            12
            08
            12
            08
            10
            7.5
            10
            7.5
            9.5mm
            7mm
            9.5mm
            7mm
