      CONDUIT & FITTINGS HARNESSFLEX RANGE TYPE TPS - HINGED T-PIECE

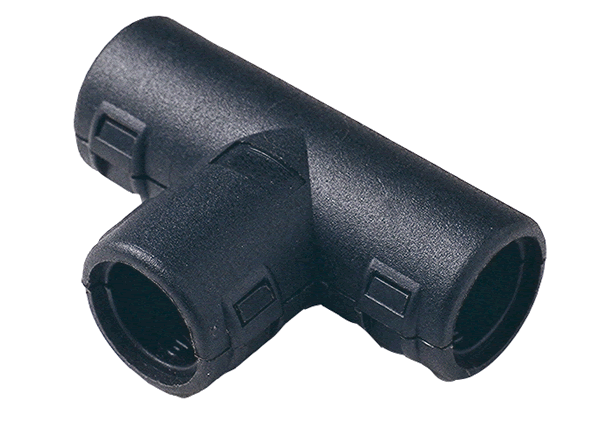

        Type TPS - Hinged T-piece




      External Hinged T-piece


      One-piece symmetrical 3 junction fittings allow a variety of conduit size variations. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore












      • One-piece external design for unrestricted bore and quick assembly with no tools.


        •

      • High pull-off strength - conduit corrugations sit tightly into joiner junctions.


        •

      • Conduit size labels - each junction indicates nominal conduit size to aid installation


        •

      • Integral retaining clips - retains conduit in position during assembly


        •

      • Polyamide (Nylon) 66


        •

      • IP40 rated


        •

      • Temperature Range: -40oC to +120oC


        •

      • Very high UV resistance


        •

      • Self extinguishing, low smoke toxicity & halogen free
        •








      Conformity







      • CE Mark to the low voltage directive


        •

      • RoHS Compliant to 2011/65/EU


        •

      • Conforms with end of life vehicle directive (ELV)EU200/53/EC
        •

















            Conduit Size (NC)
            Conduit Size (NW)




            Part No.
            A
            B
            C
            A
            B
            C




            TPS080808
            08
            08
            08
            7.5
            7.5
            7.5




            TPS081208
            08
            12
            08
            7.5
            10
            7.5




            TPS081612
            08
            16
            12
            7.5
            13
            10




            TPS100808
            10
            08
            08
            8.5
            7.5
            7.5




            TPS100810
            10
            08
            10
            8.5
            7.5
            8.5




            TPS101010
            10
            10
            10
            8.5
            8.5
            8.5




            TPS101012
            10
            10
            12
            8.5
            8.5
            13




            TPS120808
            12
            08
            08
            10
            7.5
            7.5




            TPS120812
            12
            08
            12
            10
            7.5
            10




            TPS121010
            12
            10
            10
            10
            8.5
            8.5




            TPS121012
            12
            10
            12
            10
            8.5
            10




            TPS121208
            12
            12
            08
            10
            10
            7.5




            TPS121210
            12
            12
            10
            10
            10
            7.5




            TPS121212
            12
            12
            12
            10
            10
            10




            TPS121612
            12
            16
            12
            10
            13
            10




            TPS160808
            16
            08
            08
            13
            7.5
            7.5




            TPS160812
            16
            08
            12
            13
            7.5
            10




            TPS160816
            16
            08
            16
            13
            7.5
            13




            TPS161012
            16
            10
            12
            13
            8.5
            10




            TPS161016
            16
            10
            16
            13
            8.5
            13




            TPS161212
            16
            12
            12
            13
            10
            10




            TPS161216
            16
            12
            16
            13
            10
            13




            TPS161608
            16
            16
            08
            13
            13
            7.5




            TPS161612
            16
            16
            12
            13
            13
            10




            TPS161616
            16
            16
            16
            13
            13
            13




            TPS162012
            16
            20
            12
            13
            17
            10




            TPS162016
            16
            20
            16
            13
            17
            13




            TPS200816
            20
            08
            16
            17
            7.5
            13




            TPS200820
            20
            08
            20
            17
            7.5
            17




            TPS201016
            20
            10
            16
            17
            8.5
            13




            TPS201020
            20
            10
            20
            17
            8.5
            17




            TPS201216
            20
            12
            16
            17
            10
            13




            TPS201220
            20
            12
            20
            17
            10
            17




            TPS201612
            20
            16
            12
            17
            13
            10




            TPS201616
            20
            16
            16
            17
            13
            13




            TPS201620
            20
            16
            20
            17
            13
            17




            TPS202012
            20
            20
            12
            17
            17
            10




            TPS202016
            20
            20
            16
            17
            17
            13




            TPS202020
            20
            20
            20
            17
            17
            17




            TPS202516
            20
            25
            16
            17
            22
            13




            TPS250820
            25
            08
            20
            22
            7.5
            17




            TPS250825
            25
            08
            25
            22
            7.5
            22




            TPS251025
            25
            10
            25
            22
            8.5
            22




            TPS251220
            25
            12
            20
            22
            10
            17




            TPS251225
            25
            12
            25
            22
            10
            22




            TPS251620
            25
            16
            20
            22
            13
            17




            TPS251625
            25
            16
            25
            22
            13
            22




            TPS252020
            25
            20
            20
            22
            17
            17




            TPS252025
            25
            20
            25
            22
            17
            22




            TPS252520
            25
            25
            20
            22
            22
            17




            TPS252525
            25
            25
            25
            22
            22
            22




            TPS280820
            28
            08
            20
            23
            7.5
            17




            TPS280828
            28
            08
            28
            23
            7.5
            23




            TPS281020
            28
            10
            20
            23
            8.5
            17




            TPS281028
            28
            10
            28
            23
            8.5
            23




            TPS281220
            28
            12
            20
            23
            10
            17




            TPS281225
            28
            12
            25
            23
            10
            22




            TPS281228
            28
            12
            28
            23
            10
            23




            TPS281620
            28
            16
            20
            23
            13
            17




            TPS281625
            28
            16
            25
            23
            13
            22




            TPS281628
            28
            16
            28
            23
            13
            23




            TPS282020
            28
            20
            20
            23
            17
            17




            TPS282025
            28
            20
            25
            23
            17
            22




            TPS282028
            28
            20
            28
            23
            17
            23




            TPS282525
            28
            25
            25
            23
            22
            22




            TPS282528
            28
            25
            28
            23
            22
            23




            TPS282828
            28
            28
            28
            23
            23
            23




            TPS300830
            30
            08
            30
            26
            7.5
            26




            TPS301230
            30
            12
            30
            26
            10
            26




            TPS301625
            30
            16
            25
            26
            13
            22




            TPS301630
            30
            16
            30
            26
            13
            26




            TPS302020
            30
            20
            20
            26
            17
            17




            TPS302025
            30
            20
            25
            26
            17
            22




            TPS302030
            30
            20
            30
            26
            17
            26




            TPS302525
            30
            25
            25
            26
            22
            22




            TPS303025
            30
            30
            25
            26
            26
            22




            TPS303030
            30
            30
            30
            26
            26
            26




            TPS321625
            32
            16
            25
            29
            13
            22




            TPS321632
            32
            16
            32
            29
            13
            29




            TPS322532
            32
            25
            32
            29
            22
            29




            TPS322025
            32
            20
            25
            29
            17
            22




            TPS322028
            32
            20
            28
            29
            17
            23




            TPS322032
            32
            20
            32
            29
            17
            29




            TPS322525
            32
            25
            25
            29
            22
            22




            TPS322532
            32
            25
            32
            29
            22
            29




            TPS323225
            32
            32
            25
            29
            29
            22




            TPS323232
            32
            32
            32
            29
            29
            29




            TPS401232*
            40
            12
            32
            36
            10
            29




            TPS401240*
            40
            12
            40
            36
            10
            36




            TPS401632*
            40
            16
            32
            36
            13
            29




            TPS401640*
            40
            16
            40
            36
            13
            36




            TPS402040*
            40
            20
            40
            36
            17
            36




            TPS402540*
            40
            25
            40
            36
            22
            36




            TPS402840*
            40
            28
            40
            36
            23
            36




            TPS404016*
            40
            40
            16
            36
            36
            13




            TPS404032*
            40
            40
            32
            36
            36
            29




            TPS404040*
            40
            40
            40
            36
            36
            36








      *Size 40 TPS fittings are not hinged. They are a two part fitting
