      STX – Star Teck Series


      Hazardous location glands for Teck cable




      STX is the original STAR TECK? fitting for hazardous locations.




      STX – Star Teck Series

          Hazardous location glands for Teck cable

          STX is the original STAR TECK? fitting for hazardous locations






          CONDUIT & FITTINGS  CABLE GLANDS AND ACCESSORIES  STX – STAR TECK SERIES Features




      • Excellent solution for hazardous location
        •

      • Excellent pullout strength
        •

      • Robust metallic construction
        •

      • Quick and easy installation without disassembly
        •

      • Extended clamping Range taking
        •

      • Provides grounding continuity of cable armour
        •

      • Safe operating temperature range: -40oC to +90oC (-40°F to +194°F)
        •

      • Type 4/4x IP rating
        •





      Material









      • Copper free aluminium Zinc Plated Steel
        •

      • PVC coating available for both materials


        •





      Suitable for use with







      • ?Teck and ACWU cable?
        •





      Applications







      • Provides means for passing jacketed metal clad cables through a bulkhead or enclosure in industrial and hazardous areas
        •

      • Oil and Gas Industry, Chemical and Industrial markets
        •

      • Construction and installation zones where metal clad cables are specified
        •








      Product approvals







      • RoHS (Restriction of Hazardous Substances directive) 2011/65/EU
        •

      • CSA 22.2-25/ -30/ -174/ -94

                  - Class I Div1 ABCD Class II Div1 EFG Class III Div1
        •

      • UL2225

                  - Class I Div1 ABCD Class II Div1 EFG Class III Div1
        •

      • UL514B and CSA C22.2-18.3

                  - Wet and Dry Locations
        •


                Top line numbers are metric, parenthesis numbers are inches.

                Note:?Product must be installed in accordance with applicable national and local electrical codes.













                Part no:
                Thread (NPT)
                Cable range





                Range over jacket
                Range over armour

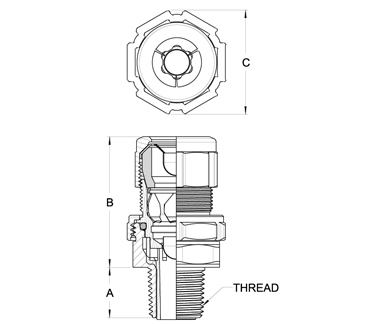

                Nominal dimensions (in)




                Min
                Max
                Min
                Max
                A
                B
                C




                STX050-462
                1/2”
                13.34

                (0.525)
                16.51

                (0.650)
                10.54

                (0.415)
                14.48

                (0.570)
                20.07

                (0.790)
                63.50

                (2.500)
                41.40

                (1.630)




                STX050-464
                1/2”
                15.24

                (0.600)
                19.30

                (0.760)
                12.45

                (0.490)
                17.27

                (0.680)
                20.07

                (0.790)
                63.50

                (2.500)
                41.40

                (1.630)




                STX075-465
                3/4”
                18.42

                (0.725)
                22.48

                (0.885)
                15.62

                (0.615)
                20.45

                (0.805)
                20.07

                (0.790)
                66.55

                (2.620)
                46.23

                (1.820)




                STX075-466
                3/4”
                20.96

                (0.825)
                25.02

                (0.985)
                18.16

                (0.715)
                22.99

                (0.905)
                20.07

                (0.790)
                66.55

                (2.620)
                46.23

                (1.820)




                STX100-467
                1”
                22.35

                (0.880)
                27.05

                (1.065)
                19.56

                (0.770)
                25.02

                (0.985)
                25.02

                (0.985)
                71.88

                (2.830)
                61.98

                (2.440)




                STX100-468
                1”
                26.04

                (1.025)
                30.61

                (1.205)
                23.24

                (0.915)
                28.58

                (1.125)
                25.02

                (0.985)
                71.88

                (2.830)
                61.98

                (2.440)




                STX125-469
                1 1/4”
                30.15

                (1.187)
                34.93

                (1.375)
                27.36

                (1.077)
                32.89

                (1.295)
                25.65

                (1.010)
                77.47

                (3.050)
                164.01

                (2.520)




                STX150-470
                1 1/2”
                34.29

                (1.350)
                41.28

                (1.625)
                31.50

                (1.240)
                39.24

                (1.545)
                26.16

                (1.030)
                95.50

                (3.760)
                83.31

                (3.280)




                STX150-550
                1 1/2”
                38.10

                (1.500)
                41.28

                (1.625)
                35.31

                (1.390)
                39.24

                (1.545)
                26.16

                (1.030)
                95.50

                (3.760)
                83.31

                (3.280)




                STX150-471
                1 1/2”
                40.64

                (1.600)
                47.63

                (1.875)
                37.85

                (1.490)
                45.59

                (1.795)
                26.16

                (1.030)
                95.50

                (3.760)
                83.31

                (3.280)




                STX200-472
                2”
                43.18

                (1.700)
                49.91

                (1.965)
                40.39

                (1.590)
                47.88

                (1.885)
                26.92

                (1.060)
                102.87

                (4.050)
                92.46

                (3.640)




                STX200-473
                2”
                48.26

                (1.900)
                55.55

                (2.187)
                45.47

                (1.790)
                53.52

                (2.107)
                26.92

                (1.060)
                102.87

                (4.050)
                92.46

                (3.640)




                STX200-474
                2”
                53.34

                (2.100)
                60.33

                (2.375)
                50.55

                (1.990)
                57.91

                (2.280)
                26.92

                (1.060)
                105.41

                (4.150)
                102.87

                (4.050)




                STX250-475
                2 1/2”
                58.42

                (2.300)
                65.15

                (2.565)
                55.63

                (2.190)
                63.12

                (2.485)
                40.13

                (1.580)
                109.47

                (4.310)
                115.32

                (4.540)




                STX250-476
                2 1/2”
                63.50

                (2.500)
                69.85

                (2.750)
                60.71

                (2.390)
                67.46

                (2.656)
                40.13

                (1.580)
                109.47

                (4.310)
                115.32

                (4.540)




                STX300-478
                3”
                65.53

                (2.580)
                72.14

                (2.840)
                61.98

                (2.440)
                69.85

                (2.750)
                41.66

                (1.640)
                143.26

                (5.640)
                125.22

                (4.930)




                STX300-479
                3”
                70.87

                (2.790)
                77.72

                (3.060)
                67.06

                (2.640)
                75.44

                (2.970)
                41.66

                (1.640)
                147.32

                (5.800)
                133.35

                (5.250)




                STX350-480
                3 1/2”
                76.20

                (3.000)
                83.06

                (3.270)
                72.90

                (2.870)
                81.03

                (3.190)
                42.93

                (1.690)
                160.53

                (6.320)
                147.07

                (5.790)




                STX350-481
                3 1/2”
                81.53

                (3.210)
                88.39

                (3.480)
                77.27

                (3.042)
                86.11

                (3.390)
                42.93

                (1.690)
                160.53

                (6.320)
                147.07

                (5.790)




                STX400-482
                4”
                86.87

                (3.420)
                93.73

                (3.690)
                83.06

                (3.270)
                91.19

                (3.590)
                44.20

                (1.740)
                168.40

                (6.630)
                157.23

                (6.190)




                STX400-483
                4”
                91.69

                (3.610)
                98.30

                (3.870)
                87.38

                (3.440)
                95.76

                (3.770)
                44.20

                (1.740)
                168.40

                (6.630)
                157.23

                (6.190)




                STX400-484
                4”
                96.77

                (3.810)
                102.36

                (4.030)
                91.44

                (3.600)
                99.82

                (3.930)
                44.20

                (1.740)
                180.09

                (7.090)
                175.26

                (6.900)




                STX400-485
                4”
                100.71

                (3.965)
                106.30

                (4.185)
                95.38

                (3.755)
                103.25

                (4.065)
                44.20

                (1.740)
                180.09

                (7.090)
                175.26

                (6.900)
