Harnessflex Conduit
Harnessflex has the largest range of flexible conduits, sealed fittings, hinged connector interfaces and Y&T pieces, anywhere in the global cable protection market.

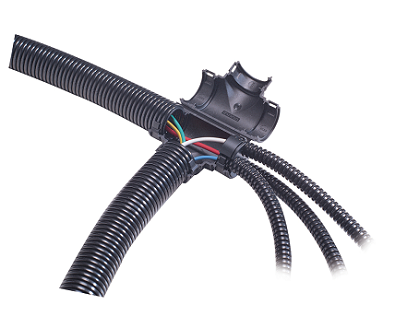

Constantly evolving through innovation driven by some of the most demanding automotive industry sectors, Harnessflex products are designed to be used together as a system for easy installation and complete wiring harness protection.
Featuring a unique vibration friendly profile (VFP) as standard, as well as UV and heat stabilisation as standard, Harnessflex conduit systems provide 10-150% greater life expectancy in dynamic or vibrating applications, when compared with other products. This maximises the productivity of the system being protected, whilst minimising the risk of electrical failure.
From fit-and-forget CPC conduit systems offering unbeatable dynamic performance, to our TempGuard range that is designed and tested to withstand extreme temperatures, Harnessflex can provide a solution for most applications and environments.
Find the ideal conduit for your specification below:
Our offering產(chǎn)品范圍

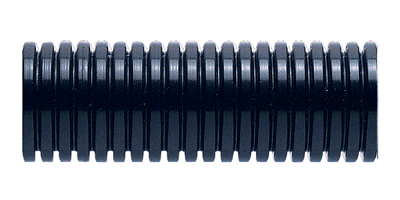

| NC conduit
Flexible standard weight nylon (PA6) conduit is a general-purpose conduit suitable for automotive harness applications. Able to withstand extreme temperatures whilst also offering resistance to automotive oils/solvents, it is extremely tough with a high impact strength. |
 |
NC slit conduit
NC standard weight is extensively used in harnesses on HGV, off-road vehicles and marine applications where a superior protection against impact and mechanical shock is preferred. The conduit is used for both chassis and engine applications and can be used in a wide range of temperatures.
|
|
| CTPA extra flexible lightweight conduit
For general purpose, lightweight loom applications. |
|
| CTPA slit lightweight conduit
Also for general purpose, lightweight loom applications.
|
|
| HNC conduit
Used in applications that require repeated flexing such as hydraulic arms and trailer couplings or rapid continuous motion. The HNC conduit offers a high fatigue life and extra flexibility even in low temperatures. |
|
| NCV flame retardant conduit
NCV flame retardant, high specification automotive harness conduit. |
|
| CPC medium weight conduit
A low smoke, low toxicity conduit, CP has excellent high and low temperature properties, making it ideal for harness applications such as engine, body section and chassis. CPC is also resistant to hydrocarbons, greases, fuels and oils. |
|
| PP medium weight conduit
PP is particularly used in lighter applications where compression strength and LFH is not so important. The main property of this conduit is acid resistance.
|
|

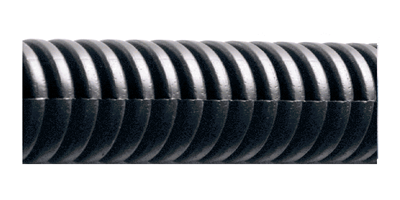

| DSPP deep section conduit
DSPP has a deep section that helps to maintain the conduit's shape during bending. Deep section conduits are supplied in slit form to facilitate rapid cable installation and easy connection to all Harnessflex hinged fittings.
|
|
| PKC standard weight conduit
Super low fire hazard PK is an UL94 V0 rated, standard weight conduit. It offers superior mechanical strength as well as high radiation and chemical protection in extreme temperatures.
|
|
| HTC high temperature conduit
This conduit has been developed for use where elevated temperatures occur. Suitable for long term exposure to temperatures up to 190oC. |
|
Harnessflex Conduit
NC conduit
Flexible standard weight nylon (PA6) conduit is a general-purpose conduit suitable for automotive harness applications. Able to withstand extreme temperatures whilst also offering resistance to automotive oils/solvents, it is extremely tough with a high impact strength.
CPC medium weight conduit
A low smoke, low toxicity conduit, CP has excellent high and low temperature properties, making it ideal for harness applications such as engine, body section and chassis. CPC is also resistant to hydrocarbons, greases, fuels and oils.
NC slit conduit
NC standard weight is extensively used in harnesses on HGV, off-road vehicles and marine applications where a superior protection against impact and mechanical shock is preferred. The conduit is used for both chassis and engine applications and can be used in a wide range of temperatures.
PP medium weight conduit
PP is particularly used in lighter applications where compression strength and LFH is not so important. The main property of this conduit is acid resistance.
CTPA extra flexible lightweight conduit
For general purpose, lightweight loom applications.
DSPP deep section conduit
DSPP has a deep section that helps to maintain the conduit's shape during bending. Deep section conduits are supplied in slit form to facilitate rapid cable installation and easy connection to all Harnessflex hinged fittings.
CTPA slit lightweight conduit
Also for general purpose, lightweight loom applications.
PKC standard weight conduit
Super low fire hazard PK is an UL94 V0 rated, standard weight conduit. It offers superior mechanical strength as well as high radiation and chemical protection in extreme temperatures.
HNC conduit
Used in applications that require repeated flexing such as hydraulic arms and trailer couplings or rapid continuous motion. The HNC conduit offers a high fatigue life and extra flexibility even in low temperatures.
HTC high temperature conduit
This conduit has been developed for use where elevated temperatures occur. Suitable for long term exposure to temperatures up to 190oC.
NCV flame retardant conduit
NCV flame retardant, high specification automotive harness conduit.
|
