Harnessflex TempGuard FCI Automotive Apex
Harnessflex High temperature external hinged connector interfaces

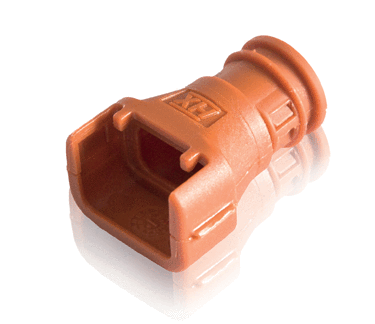

A range of straight and 90° elbow fittings offering a compact and high integrity, high temperature connection protection between FCI Apex automotive connectors or junior timer connectors and Harnessflex conduit systems in elevated temperature areas. These interfaces provide complete cable protection right up to the connector. They also provide strain relief and protection from high pressure washing, helping to maintain the sealing integrity of the connector. Full TempGuard system protection is achieved using these fittings with HTC conduit.

Harnessflex Download TempGuard FCI Automotive Apex datasheet
| Temperature Range |
| Minimum |
-40oC |
| Permanent Max |
+160oC |
| Long term max (30,000 hrs) |
+185oC |
| Short term max (3,000 hrs) |
+200oC |
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength - conduit corrugations sit tightly into joiner junctions.
- Conduit size labels - each junction indicates nominal conduit size to aid installation
- High Temperature Polyamide (Nylon) - Low Smoke & Halogen Free
- IP40 rated
- High UV resistance
*Image is representative of finished product, details may vary
Conformity
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
- UL94 V2 / UL94 RTI 150 (Elec)
FCI Automotive Apex Straight Interface
| NC |
NW |
| CIH08-90-FCI02 |
08 |
7.5 |
– |
– |
| CIH08-90-FCI03 |
08 |
7.5 |
– |
– |
| CIH12-90-FCI02 |
12 |
10 |
– |
– |
| CIH08-90-FCS02* |
08 |
7.5 |
– |
– |
| CIH08-90-FCI04* |
08 |
7.5 |
– |
– |
| CIH12-90-FCI03* |
12 |
10 |
– |
– |
| CIH12-90-FCI04* |
12 |
10 |
– |
– |
| CIH08-90-FCI14* |
08 |
7.5 |
– |
– |
| CIH12-90-FCI14* |
12 |
10 |
– |
– |
*Made to order - Part numbers listed are available to order but not stocked items, and would therefore be subject to manufacturing leadtime

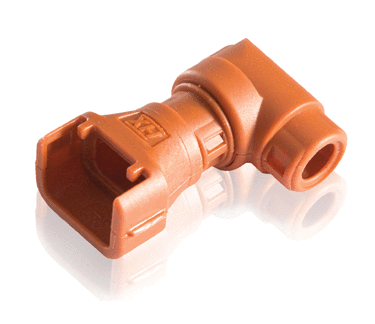

FCI Automotive Apex 90o Elbow Swivel Interface
