Kopex C6 Series系列防爆電纜戈蘭
Kopex C6 Series? Ex d e Single compression EMC metric cable gland?

ATEX/IECEx Metallic cable glands for circular shielded or screened non-armoured cable offering a multiple range seal configuration.

Features

Multiple layered seals for wide clamping range
Good corrosion resistance
Multiple screening contacts for increased continuity
Safe operating temperature range: -40°C to +80°C (-20°F to?+212°F)
IP66 and IP68 (5 bar 30 mins) rating

Material

Nickel plated brass or Stainless steel 316L
Chloroprene seals

Suitable for cable types

Braided Screened
Coax
Tape shielded?

Applications

Suitable for Ex d Ex e and Ex tb applications
Gas zones 1, 2 and dust zones 21, 22
Control panels and instrumentation
Speed controllers and sensors?

Product Approvals

EN/IEC 60079-0, 60079-1, 60079-7, 60079-31
EN 62444
RoHS 2011/65/EU
WEEE 2002/96/EC
LVD 2014/35/EU
DNV Marine Type Approval

–C6 Metric
Bold numbers are metric, Italic numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.

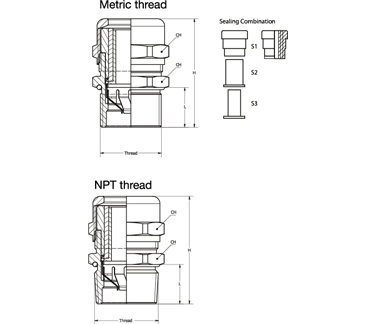

Part no	Metric thread	Cable range		Nominal dimensions (mm/in)
Part no	Metric thread	Min. (mm/in)	Max. (mm/in)	A min	B min	C min	W1	W2
EXN03MSC6	M16x1.5	4.0	8.0	16.0	28.5	22.0	20.0	20.0
EXN03MSC6	M16x1.5	0.157	0.315	0.63	1.122	0.866	0.787	0.787
EXN03MMC6	M16x1.5	4.0	8.0	16.0	28.5	24.5	22.0	22.0
EXN03MMC6	M16x1.5	0.157	0.315	0.63	1.122	0.965	0.866	0.866
EXN04MMC6	M20x1.5	4.0	12.0	18.0	27.0	24.5	22.0	22.0
EXN04MMC6	M20x1.5	0.157	0.472	0.709	1.063	0.965	0.866	0.866
EXN05MMC6	M25x1.5	10.0	18.0	16.0	30.5	31.0	28.0	28.0
EXN05MMC6	M25x1.5	0.394	0.709	0.63	1.201	1.22	1.102	1.102
EXN06MMC6	M32x1.5	14.0	24.0	19.0	33.0	39.0	35.0	35.0
EXN06MMC6	M32x1.5	0.551	0.945	0.748	1.299	1.535	1.378	1.378
EXN07MMC6	M40x1.5	22.0	32.0	20.0	40.5	49.5	45.0	45.0
EXN07MMC6	M40x1.5	0.866	1.26	0.787	1.594	1.949	1.772	1.772
EXN08MMC6	M50x1.5	26.0	35.0	20.0	43.5	61.0	55.0	50.0
EXN08MMC6	M50x1.5	1.024	1.378	0.787	1.713	2.402	2.165	1.969
EXN09MMC6	M63x1.5	35.0	45.0	20.0	43.5	70.0	68.0	64.0
EXN09MMC6	M63x1.5	1.378	1.772	0.787	1.713	2.756	2.677	2.52

– C6 NPT
Bold numbers are metric, Italic numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.

Part no	NPT thread	Cable range		Nominal dimensions (mm/in)
Part no	NPT thread	Min. (mm/in)	Max. (mm/in)	A min	B min	C min	W1	W2
EXN03ASC6	3/8”	4.0	8.0	16.0	28.5	22.0	20.0	20.0
EXN03ASC6	3/8”	0.157	0.315	0.63	1.122	0.866	0.787	0.787
EXN03AMC6	3/8”	4.0	8.0	18.0	28.5	24.5	22.0	22.0
EXN03AMC6	3/8”	0.157	0.315	0.709	1.122	0.965	0.866	0.866
EXN04AMC6	1/2”	4.0	12.0	18.0	27.0	24.5	22.0	22.0
EXN04AMC6	1/2”	0.157	0.472	0.709	1.063	0.965	0.866	0.866
EXN05AMC6	3/4”	10.0	18.0	20.0	30.5	31.0	28.0	28.0
EXN05AMC6	3/4”	0.394	0.709	0.787	1.201	1.22	1.102	1.102
EXN06AMC6	3/4”	14.0	24.0	20.0	33.0	39.0	35.0	35.0
EXN06AMC6	3/4”	0.551	0.945	0.787	1.299	1.535	1.378	1.378
EXN07AMC6	1”	22.0	32.0	20.0	40.5	49.5	45.0	45.0
EXN07AMC6	1”	0.866	1.26	0.787	1.594	1.949	1.772	1.772
EXN08AMC6	1 1/4”	26.0	35.0	20.0	43.5	61.0	55.0	50.0
EXN08AMC6	1 1/4”	1.024	1.378	0.787	1.713	2.402	2.165	1.969
EXN09AMC6	1 1/2”	35.0	45.0	20.0	43.5	70.0	68.0	64.0
EXN09AMC6	1 1/2”	1.378	1.772	0.787	1.713	2.756	2.677	2.52
