Kopex-Ex C5 Series系列防爆電纜戈蘭
Kopex-Ex C5 Series Ex d e armoured compound barrier flameproof cable gland?

ATEX/IECEx Metallic cable glands for armoured cable offering a compound barrier seal for Ex e and Ex d applications.

Kopex-Ex C5 Series Ex d e armoured compound barrier flameproof cable gland?

Features?

Compound barrier inner seal with outer compression seal
Wide cable clamping range
Good corrosion resistance
Safe operating temperature range: -60 to +100°C (-76 to +212°F)
IP66 rated?

Material

Nickel plated brass or Stainless steel 316L
Chloroprene or Silicone Seals

Suitable for cable types

SWA (Steel Wire Armoured)
SWB (Steel Wire Braid)
AWA (Aluminium Wire Armoured)
STA (Steel tape Armoured)

Applications

Suitable for Ex d Ex e and Ex tb applications
Gas zones 1, 2 and dust zones 21, 22
Control panels and junction boxes
Light fixture ?& housings
Power distribution
Machine building

Product Approvals

EN/IEC 60079-0, 60079-1, 60079-7, 60079-31
EN 62444
RoHS 2011/65/EU
WEEE 2002/96/EC
LVD 2014/35/EU
UL514B
UL2225 Class and Zone
DNV Marine Type Approval

+ Metric thread

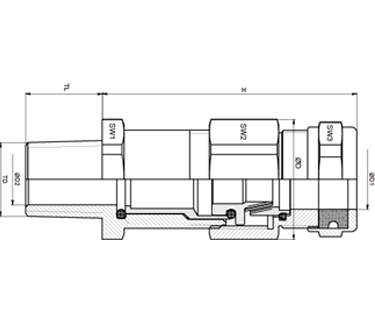

Part no	Thread (metric)	cable range (mm) (min-max)	Nominal dimensions (mm)
Part no	Thread (metric)	cable range (mm) (min-max)	H	TL	?D	?D1	?D2	SW1	SW2	SW3
EXN04MC5	M20	8.5 - 16.0	70.0	16.0	33.0	16.5	14.0	30.0	30.0	29.0
EXN05MC5	M25	16.0 - 21.0	72.1	16.0	37.0	21.5	15.5	34.0	34.0	34.0
EXN06MC5	M32	16.0 - 26.0	76.0	16.0	45.0	26.5	25.6	42.0	42.0	40.0
EXN07MC5	M40	29.0 - 41.0	83.4	16.0	66.0	41.5	33.0	50.0	60.0	60.0
EXN08MC5	M50	33.0 - 48.0	96.6	16.0	77.0	48.5	43.0	60.0	70.0	75.0
EXN09MC5	M63	36.0 - 52.0	109.5	16.0	77.0	52.5	52.0	70.0	70.0	74.0

+ NPT Thread

Part no	Thread (NPT)	Cable range (in) (min-max)	Nominal dimensions (in)
Part no	Thread (NPT)	Cable range (in) (min-max)	H	TL	?D	?D1	?D2	SW1	SW2	SW3
EXN04AC5	1/2”	0.334 - 0.629	2.755	0.826	1.299	0.649	0.551	1.181	1.181	1.181
EXN05AC5	3/4”	0.629 - 0.826	2.838	0.826	1.456	0.846	0.610	1.338	1.338	1.338
EXN06AC5	1”	0.629 - 1.023	2.992	1.023	1.771	1.043	1.007	1.653	1.653	1.574
EXN07AC5	1 1/4”	1.141 - 1.614	3.283	1.102	2.598	1.633	1.299	1.968	2.362	2.362
EXN08AC5	1 1/2”	1.299 - 1.889	3.803	1.102	3.031	1.909	1.692	2.362	2.755	2.952
EXN09AC5	2”	1.417 - 2.047	4.311	1.102	3.031	2.066	2.047	2.755	2.755	2.913
