Kopex C3 Series防爆電纜戈蘭
Kopex C3 Series Ex d e single compression cable gland

ATEX/IECEx Metallic cable glands for non-armoured cable offering a single compression configuration.

Features

Kopex C3 Series Ex d e single compression cable gland

Single compression
Wide cable clamping range
Good corrosion resistance
Safe operating temperature range: -40oC to +100oC (-40 to +212°F)
IP66 - IP68 rating (5-Bar 30 mins)

Material

Nickel plated brass or Stainless steel 316L
Chloroprene or Silicone Seals

Suitable for use with

Heavy duty circular non-armoured

Applications

Suitable for Ex d Ex e and Ex tb applications
Gas zones 1, 2 and dust zones 21, 22
Control panels and junction boxes
Power distribution

?

Product Approvals

EN/IEC 60079-0, 60079-1, 60079-7, 60079-3111, 60079-31
EN 62444
RoHS 2011/65/EU
WEEE 2002/96/EC
LVD 2014/35/EU
DNV Marine Type Approval

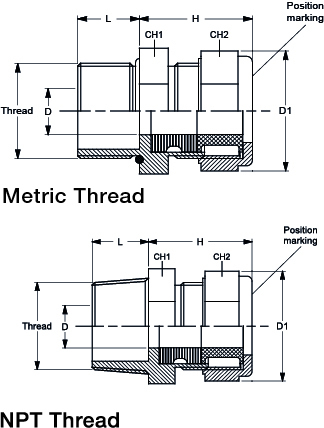

–C3 Metric
Bold numbers are metric, parenthesis numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.

Part no.	Metric thread	Min. (mm/in)	Max. (mm/in)	A Min	B Min	C Min	W1	W2
EXN03MSC3	M16x1.5	3.0	8.5	16.0	25.0	29.0	22.0	26.0
		0.118	0.335	0.63	0.984	1.142	0.866	1.024
EXN03MMC3	M16x1.5	6.0	12.0	16.0	28.5	31.5	25.0	29.0
		0.236	0.472	0.63	1.122	1.24	0.984	1.142
EXN04MSC3	M20x1.5	6.0	12.0	16.0	27.5	31.5	25.0	29.0
		0.236	0.472	0.63	1.083	1.24	0.984	1.142
EXN04MMC3	M20x1.5	12.0	14.5	16.0	29.0	33.5	28.0	30.0
		0.472	0.571	0.63	1.142	1.319	1.102	1.181
EXN05MSC3	M25x1.5	6.0	12.0	18.0	28.5	31.5	29.0	29.0
		0.236	0.472	0.709	1.122	1.24	1.142	1.142
EXN05MMC3	M25x1.5	12.0	16.0	18.0	28.5	37.0	32.0	35.0
		0.472	0.63	0.709	1.122	1.457	1.26	1.378
EXN05MLC3	M25x1.5	12.0	20.0	18.0	32.5	44.5	36.0	40.0
		0.472	0.787	0.709	1.28	1.752	1.417	1.575
EXN06MSC3	M32x1.5	12.0	20.0	18.0	33.5	44.5	40.0	40.0
		0.472	0.787	0.709	1.319	1.752	1.575	1.575
EXN06MMC3	M32x1.5	15.0	26.0	18.0	41.0	57.0	48.0	52.0
		0.591	1.024	0.709	1.614	2.244	1.89	2.047
EXN07MSC3	M40x1.5	15.0	26.0	18.0	41.0	57.0	48.0	52.0
		0.591	1.024	0.709	1.614	2.244	1.89	2.047
EXN07MMC3	M40x1.5	20.0	32.0	18.0	50.0	66.0	55.0	60.0
		0.787	1.26	0.709	1.969	2.598	2.165	2.362
EXN08MSC3	M50x1.5	22.0	35.0	18.0	50.5	77.0	60.0	70.0
		0.866	1.378	0.709	1.988	3.031	2.362	2.756
EXN08MMC3	M50x1.5	27.0	41.0	18.0	54.0	77.0	70.0	70.0
		1.063	1.614	0.709	2.126	3.031	2.756	2.756
EXN09MSC3	M63x1.5	35.0	45.0	20.0	61.5	89.5	75.0	80.0
		1.378	1.772	0.787	2.421	3.524	2.953	3.15
EXN09MMC3	M63x1.5	40.0	52.0	20.0	61.5	94.0	85.0	85.0
		1.575	2.047	0.787	2.421	3.701	3.346	3.346
EXN10MSC3	M75x1.5	40.0	52.0	20.0	61.5	94.0	85.0	85.0
		1.575	2.047	0.787	2.421	3.701	3.346	3.346
EXN10MMC3	M75x1.5	45.0	60.0	20.0	72.0	105.0	90.0	95.0
		1.772	2.362	0.787	2.835	4.134	3.543	3.74
EXN11MSC3	M90x1.5	45.0	60.0	20.0	72.0	105.0	95.0	95.0
		1.772	2.362	0.787	2.835	4.134	3.74	3.74
EXN11MMC3	M90x1.5	60.0	72.0	20.0	84.0	127.0	110.0	115.0
		2.362	2.835	0.787	3.307	5.000	4.331	4.528

–C3 NPT
Bold numbers are metric, parenthesis numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.

Part no.	NPT Thread	Min. (mm/in)	Max. (mm/in)	A Min	B Min	C Min	W1	W2
EXN03ASC3	3/8"	3.0	8.5	16.0	25.0	29.0	22.0	26.0
		0.118	0.335	0.63	0.984	1.142	0.866	1.024
EXN03AMC3	3/8"	6.0	12.0	16.0	28.5	31.5	25.0	29.0
		0.236	0.472	0.63	1.122	1.24	0.984	1.142
EXN04ASC3	1/2"	6.0	12.0	16.0	27.5	31.5	25.0	29.0
		0.236	0.472	0.63	1.083	1.24	0.984	1.142
EXN04AMC3	1/2"	12.0	14.5	16.0	29.0	33.5	28.0	30.0
		0.472	0.571	0.63	1.142	1.319	1.102	1.181
EXN05ASC3	3/4"	6.0	12.0	18.0	28.5	31.5	29.0	29.0
		0.236	0.472	0.709	1.122	1.24	1.142	1.142
EXN05AMC3	3/4"	12.0	16.0	18.0	28.5	37.0	32.0	35.0
		0.472	0.63	0.709	1.122	1.457	1.26	1.378
EXN05ALC3	3/4"	12.0	20.0	18.0	32.5	44.5	36.0	40.0
		0.472	0.787	0.709	1.28	1.752	1.417	1.575
EXN06ASC3	1"	12.0	20.0	18.0	33.5	44.5	40.0	40.0
		0.472	0.787	0.709	1.319	1.752	1.575	1.575
EXN06AMC3	1"	15.0	26.0	18.0	41.0	57.0	48.0	52.0
		0.591	1.024	0.709	1.614	2.244	1.89	2.047
EXN07ASC3	11/4"	15.0	26.0	28.0	41.0	57.0	48.0	52.0
		0.591	1.024	1.102	1.614	2.244	1.89	2.047
EXN07AMC3	11/4”	20.0	32.0	18.0	50.0	66.0	55.0	60.0
		0.787	1.26	0.709	1.969	2.598	2.165	2.362
EXN08ASC3	11/2”	22.0	35.0	18.0	50.5	77.0	60.0	70.0
		0.866	1.378	0.709	1.988	3.031	2.362	2.756
EXN08AMC3	11/2”	27.0	41.0	18.0	54.0	77.0	70.0	70.0
		1.063	1.614	0.709	2.126	3.031	2.756	2.756
EXN09ASC3	2”	35.0	45.0	20.0	61.5	89.5	75.0	80.0
		1.378	1.772	0.787	2.421	3.524	2.953	3.15
EXN09AMC3	2”	40.0	52.0	20.0	61.5	94.0	85.0	85.0
		1.575	2.047	0.787	2.421	3.701	3.346	3.346
EXN10ASC3	21/2”	40.0	52.0	20.0	61.5	94.0	85.0	85.0
		1.575	2.047	0.787	2.421	3.701	3.346	3.346
EXN10AMC3	21/2”	45.0	60.0	20.0	72.0	105.0	90.0	95.0
		1.772	2.362?	?0.787	2.835	4.134?	3.543?	3.74?
EXN11ASC3	M90x1.5	45.0	60.0	20.0	72.0	105.0	95.0	95.0
		1.772	2.362	0.787	2.835	4.134	3.74	3.74
EXN11AMC3	M90x1.5	60.0	72.0	20.0	84.0	127.0	110.0	115.0
		2.362	2.835	0.787	3.307	5.000	4.331	4.528
