Kopex C2 Series防爆電纜戈蘭
Kopex C2 Series Ex d e single compression cable gland
ATEX/IECEx Metallic cable glands for circular non-armoured cable offering a multiple range seal configuration.
Features
Kopex C2 Series Ex d e single compression cable gland
Material
- Nickel plated brass or Stainless steel 316L
- Chloroprene seals
Suitable for use with
Circular non-armoured cable
Applications
- Suitable for Ex d, Ex e and Ex tb applications
- Gas zones 1, 2 and dust zones 21, 22
- Control panels and junction boxes
- Light fixture ?& housings
- Machine building
- Heat tracing
Product Approvals
- EN/IEC 60079-0, 60079-1, 60079-7, 60079-31
- EN 62444
- RoHS 2011/65/EU
- WEEE 2002/96/EC
- LVD 2014/35/EU
- UL514B
- UL2225 Class and Zone
- DNV Marine Type Approval

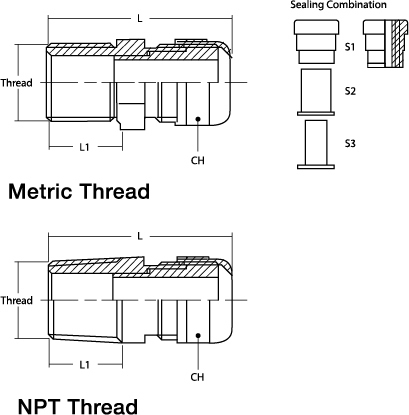

–C2 Metric
Bold numbers are metric, italic numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.
| Part no. |
Metric thread |
Inner Min. (mm/in) |
Outer Max. (mm/in) |
A Min |
B Min |
C Min |
W1 |
W2 |
| EXN03MMC2 |
M16x1.5 |
4.0 |
12.0 |
16.0 |
31.0 |
24.0 |
22.0 |
22.0 |
|
|
0.157 |
0.472 |
0.63 |
1.22 |
0.945 |
0.866 |
0.866 |
| EXN04MSC2 |
M20x1.5 |
3.0 |
9.0 |
16.0 |
27.0 |
24.0 |
22.0 |
20.0 |
|
|
0.118 |
0.354 |
0.63 |
1.063 |
0.945 |
0.866 |
0.787 |
| EXN04MMC2 |
M20x1.5 |
4.0 |
12.0 |
16.0 |
27.0 |
24.0 |
22.0 |
22.0 |
|
|
0.157 |
0.472 |
0.63 |
1.063 |
0.945 |
0.866 |
0.866 |
| EXN04MLC2 |
M20x1.5 |
10.0 |
16.0 |
16.0 |
30.0 |
31.0 |
28.0 |
28.0 |
|
|
0.394 |
0.63 |
0.63 |
1.181 |
1.22 |
1.102 |
1.102 |
| EXN05MMC2 |
M25x1.5 |
10.0 |
18.0 |
16.0 |
30.5 |
31.0 |
28.0 |
28.0 |
|
|
0.394 |
0.709 |
0.63 |
1.201 |
1.22 |
1.102 |
1.102 |
| EXN05MLC2 |
M25x1.5 |
14.0 |
20.0 |
16.0 |
34.0 |
39.0 |
35.0 |
35.0 |
|
|
0.551 |
0.787 |
0.63 |
1.339 |
1.535 |
1.378 |
1.378 |
| EXN06MMC2 |
M32x1.5 |
14.0 |
24.0 |
16.0 |
33.0 |
39.0 |
35.0 |
35.0 |
|
|
0.551 |
0.945 |
0.63 |
1.299 |
1.535 |
1.378 |
1.378 |
| EXN06MLC2 |
M32x1.5 |
22.0 |
28.0 |
16.0 |
41.0 |
50.0 |
45.0 |
45.0 |
|
|
0.866 |
1.102 |
0.63 |
1.614 |
1.969 |
1.772 |
1.772 |
| EXN07MMC2 |
M40x1.5 |
22.0 |
32.0 |
18.0 |
41.0 |
50.0 |
45.0 |
45.0 |
|
|
0.866 |
1.26 |
0.709 |
1.614 |
1.969 |
1.772 |
1.772 |
| EXN07MLC2 |
M40x1.5 |
26.0 |
34.0 |
18.0 |
44.0 |
55.5 |
50.0 |
50.0 |
|
|
1.024 |
1.339 |
0.709 |
1.732 |
2.185 |
1.969 |
1.969 |
| EXN08MSC2 |
M50x1.5 |
26.0 |
35.0 |
18.0 |
44.0 |
61.0 |
55.0 |
50.0 |
|
|
1.024 |
1.378 |
0.709 |
1.732 |
2.402 |
2.165 |
1.969 |
| EXN08MMC2 |
M50x1.5 |
35.0 |
44.0 |
18.0 |
43.0 |
70.0 |
64.0 |
64.0 |
|
|
1.378 |
1.732 |
0.709 |
1.693 |
2.756 |
2.52 |
2.52 |
| EXN09MSC2 |
M63x1.5 |
35.0 |
45.0 |
18.0 |
43.0 |
75.0 |
68.0 |
64.0 |
|
|
1.378 |
1.772 |
0.709 |
1.693 |
2.953 |
2.677 |
2.52 |
| EXN09MMC2 |
M63x1.5 |
46.0 |
56.0 |
18.0 |
52.5 |
89.0 |
75.0 |
80.0 |
|
|
1.811 |
2.205 |
0.709 |
2.067 |
3.504 |
2.953 |
3.15 |
| EXN10MSC2 |
M75x1.5 |
46.0 |
62.0 |
20.0 |
52.0 |
89.0 |
80.0 |
80.0 |
|
|
1.811 |
2.441 |
0.787 |
2.047 |
3.504 |
3.15 |
3.15 |
| EXN10MMC2 |
M75x1.5 |
60.0 |
69.0 |
20.0 |
55.0 |
105.0 |
95.0 |
95.0 |
|
|
2.362 |
2.717 |
0.787 |
2.165 |
4.134 |
3.74 |
3.74 |
| EXN11MSC2 |
M90x1.5 |
60.0 |
75.0 |
20.0 |
55.0 |
105.0 |
95.0 |
95.0 |
|
|
2.362 |
2.953 |
0.787 |
2.165 |
4.134 |
3.74 |
3.74 |
| EXN11MMC2 |
M90x1.5 |
75.0 |
82.0 |
20.0 |
55.0 |
117.0 |
105.0 |
105.0 |
|
|
2.953 |
3.228 |
0.787 |
2.165 |
4.606 |
4.134 |
4.134 |
–C2 NPT
Bold numbers are metric, parenthesis numbers are inches.
Note: Product must be installed in accordance with applicable national and local electrical codes.
| Part no. |
NPT thread |
Min. (mm/in) |
Max. (mm/in) |
A Min |
B Min |
C Min |
W1 |
W2 |
| EXN03AMC2 |
3/8” |
4.0 |
12.0 |
16.0 |
31.0 |
24.0 |
22.0 |
22.0 |
|
|
0.157 |
0.472 |
0.63 |
1.22 |
0.945 |
0.866 |
0.866 |
| EXN04ASC2 |
1/2” |
3.0 |
9.0 |
16.0 |
27.0 |
24.0 |
22.0 |
20.0 |
|
|
0.118 |
0.354 |
0.63 |
1.063 |
0.945 |
0.866 |
0.787 |
| EXN04AMC2 |
1/2” |
4.0 |
12.0 |
16.0 |
27.0 |
24.0 |
22.0 |
22.0 |
|
|
0.157 |
0.472 |
0.63 |
1.063 |
0.945 |
0.866 |
0.866 |
| EXN04ALC2 |
1/2” |
10.0 |
16.0 |
16.0 |
30.0 |
31.0 |
28.0 |
28.0 |
|
|
0.394 |
0.63 |
0.63 |
1.181 |
1.22 |
1.102 |
1.102 |
| EXN05AMC2 |
3/4” |
10.0 |
18.0 |
16.0 |
30.5 |
31.0 |
28.0 |
28.0 |
|
|
0.394 |
0.709 |
0.63 |
1.201 |
1.22 |
1.102 |
1.102 |
| EXN05ALC2 |
3/4” |
14.0 |
20.0 |
16.0 |
34.0 |
39.0 |
35.0 |
35.0 |
|
|
0.551 |
0.787 |
0.63 |
1.339 |
1.535 |
1.378 |
1.378 |
| EXN06AMC2 |
1” |
14.0 |
24.0 |
20.0 |
33.0 |
39.0 |
35.0 |
35.0 |
|
|
0.551 |
0.945 |
0.787 |
1.299 |
1.535 |
1.378 |
1.378 |
| EXN06ALC2 |
1” |
22.0 |
28.0 |
20.0 |
41.0 |
50.0 |
45.0 |
45.0 |
|
|
0.866 |
1.102 |
0.787 |
1.614 |
1.969 |
1.772 |
1.772 |
| EXN07AMC2 |
1 1/4” |
22.0 |
32.0 |
20.0 |
41.0 |
50.0 |
45.0 |
45.0 |
|
|
0.866 |
1.26 |
0.787 |
1.614 |
1.969 |
1.772 |
1.772 |
| EXN07ALC2 |
11/4” |
26.0 |
34.0 |
20.0 |
44.0 |
55.5 |
50.0 |
50.0 |
|
|
1.0 |
1.3 |
0.8 |
1.7 |
2.2 |
2.0 |
2.0 |
| EXN08ASC2 |
11/2” |
26.0 |
35.0 |
20.0 |
44.0 |
61.0 |
55.0 |
50.0 |
|
|
1.0 |
1.4 |
0.8 |
1.7 |
2.4 |
2.2 |
2.0 |
| EXN08AMC2 |
11/2” |
35.0 |
44.0 |
20.0 |
43.0 |
70.0 |
64.0 |
64.0 |
|
|
1.4 |
1.7 |
0.8 |
1.7 |
2.8 |
2.5 |
2.5 |
| EXN09ASC2 |
2” |
35.0 |
45.0 |
20.0 |
43.0 |
75.0 |
68.0 |
64.0 |
|
|
1.4 |
1.8 |
0.8 |
1.7 |
3.0 |
2.7 |
2.5 |
| EXN09AMC2 |
2” |
46.0 |
56.0 |
20.0 |
52.5 |
89.0 |
75.0 |
80.0 |
|
|
1.8 |
2.2 |
0.8 |
2.1 |
3.5 |
3.0 |
3.2 |
| EXN10ASC2 |
21/2” |
46.0 |
62.0 |
21.0 |
52.0 |
89.0 |
80.0 |
80.0 |
|
|
1.8 |
2.4 |
0.8 |
2.0 |
3.5 |
3.2 |
3.2 |
| EXN10AMC2 |
21/2” |
60.0 |
69.0 |
21.0 |
55.0 |
105.0 |
95.0 |
95.0 |
|
|
2.4 |
2.7 |
0.8 |
2.2 |
4.1 |
3.7 |
3.7 |
| EXN11ASC2 |
3” |
60.0 |
75.0 |
21.0 |
55.0 |
105.0 |
95.0 |
95.0 |
|
|
?2.4 |
3.0 |
0.8? |
?2.2 |
4.1? |
3.7? |
3.7? |
| EXN11AMC2 |
3” |
75.0 |
82.0 |
21.0 |
55.0 |
117.0 |
105.0 |
105.0 |
|
|
3.0 |
3.2 |
0.8 |
2.2 |
4.6 |
4.1 |
4.1 |
|
