Harnessflex TempGuard Bosch Compact
Harnessflex High temperature external hinged connector interfaces
Single junction straight and 90° elbow fittings providing high integrity, high temperature connection between Bosch Compact connectors and Harnessflex conduit systems in elevated temperature areas. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing, sufficient to avoid the problems associated with one-piece interfaces of overflexing due to movement or vibration. Full TempGuard system protection is achieved using these fittings with HTC conduit.
Harnessflex Download TempGuard Bosch Compact datasheet
| Temperature Range |
| Minimum |
-40oC |
| Permanent Max |
+160oC |
| Long term max (30,000 hrs) |
+185oC |
| Short term max (3,000 hrs) |
+200oC |
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength - conduit corrugations sit tightly into joiner junctions.
- Conduit size labels - each junction indicates nominal conduit size to aid installation
- High Temperature Polyamide (Nylon) - Low Smoke & Halogen Free
- IP40 rated
- High UV resistance

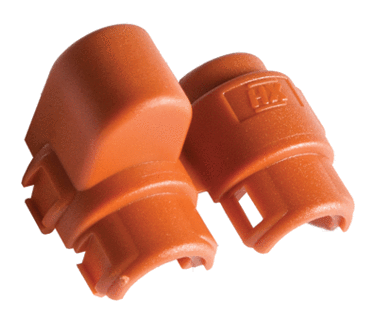

*Image is representative of finished product, details may vary
Conformity
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
- UL94 V2 / UL94 RTI 150 (Elec)
Bosch Compact Straight Interface
| Part No. |
Conduit Size |
Interface Reference |
Connector Reference |
| NC |
NW |
| CIH08-BC2 |
08 |
7.5 |
2 Way |
1 928 403 137* |
| CIH08-BC3 |
08 |
7.5 |
3 Way |
1 928 403 110* |
| CIH12-BC2 |
12 |
10 |
2 Way |
1 928 403 137* |
| CIH12-BC3 |
12 |
10 |
3 Way |
1 928 403 110* |
| CIH08-BC4* |
08 |
7.5 |
4 Way |
– |
| CIH12-BC4* |
12 |
10 |
4 Way |
– |
*Made to order - Part numbers listed are available to order but not stocked items, and would therefore be subject to manufacturing leadtime
Bosch Compact 90o Elbow Swivel Interface
| Part No. |
Conduit Size |
Interface Reference |
Connector Reference |
| NC |
NW |
| CIH08-90-BC2 |
08 |
7.5 |
2 Way |
1 928 403 137* |
| CIH08-90-BC3 |
08 |
7.5 |
3 Way |
1 928 403 110* |
| CIH12-90-BC2 |
12 |
10 |
2 Way |
1 928 403 137* |
| CIH08-90-BC4* |
08 |
7.5 |
4 Way |
– |
| CIH12-90-BC4* |
12 |
10 |
4 Way |
– |
*Made to order - Part numbers listed are available to order but not stocked items, and would therefore be subject to manufacturing leadtime
|
